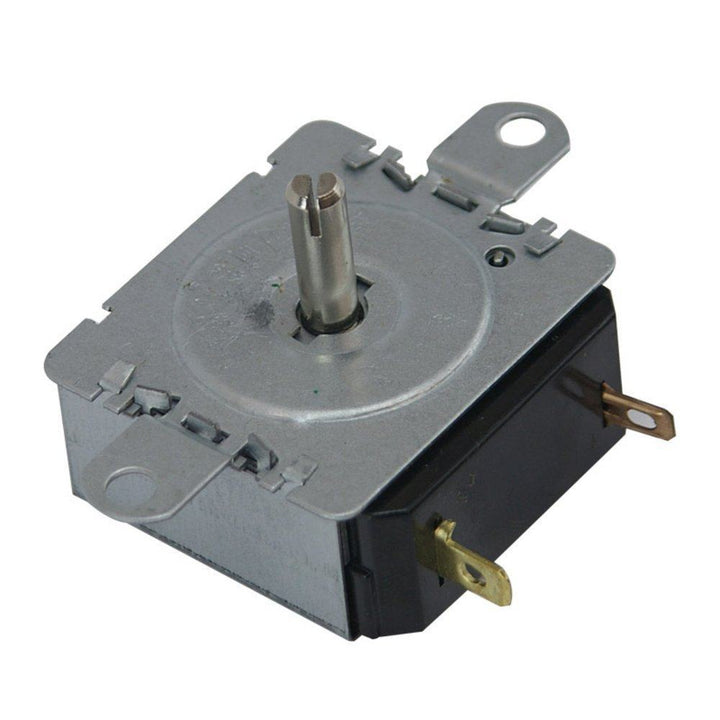

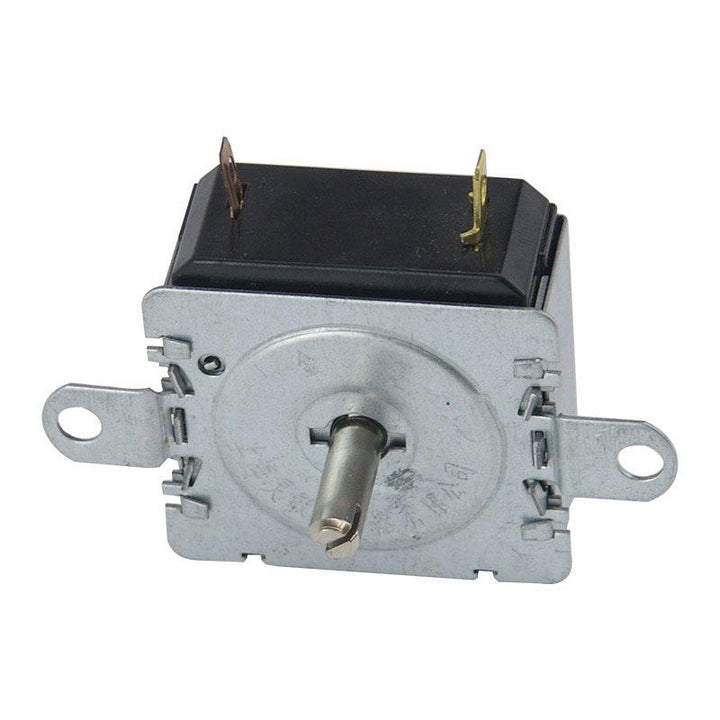

US-CU-BU Timer Module

• NOTE : Replacing / altering any electronic components within the first 12 months of purchase will void manufacturer warranty.
• Clockwork mechanical timer
• OFF, ON positions and adjustable timer 1-20 minutes
• Power handling up to 240VAC 16 amps
• 4.8x0.5mm spade connections
• Common, Normally open connections
• ¼” shaft diameter, Compatible knob US-SP-DIAL
• Main body dimensions 56x37x34 (including spade connections, excluding knob shaft)
• Main body dimensions 54x47x22 (including spade connections, excluding knob shaft and fixing arms)

We strongly advise that this part is only intended for use on the advertised model and should not be used to repair any other item branded by a different manufacturer. Although the parts may look the same, the technical specifications may vary. Using parts that are incompatible can cause injury or serious damage to the part being replaced. We reserve the right to void any warranty where this part is not used in its intended circumstance.

** WARNING!! Ultrasonic tanks contain components which operate at lethal voltages, work should ONLY be undertaken by suitably qualified individuals **
