Front Panel for Cavitek 10L, 20L, 27L, 36L Ultrasonic Cleaners

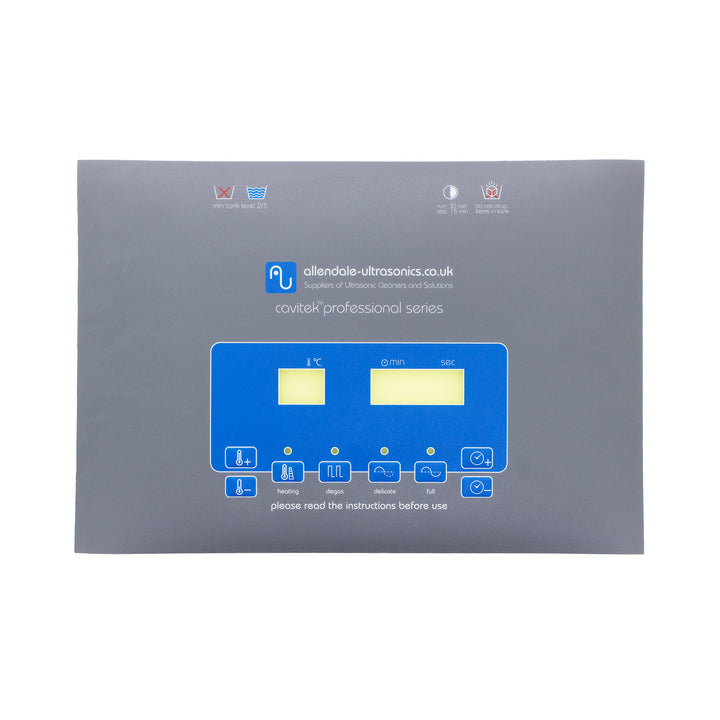

Replacement self-adhesive control panel designed for Cavitek 10L, 20L, 27L, and 36L capacity ultrasonic cleaners. Designed to meet original equipment specifications, it includes the correct control layout and electrical connections to ensure reliable operation. This allows for precise control of temperature, time, and power settings, making sure your ultrasonic cleaner performs as expected.

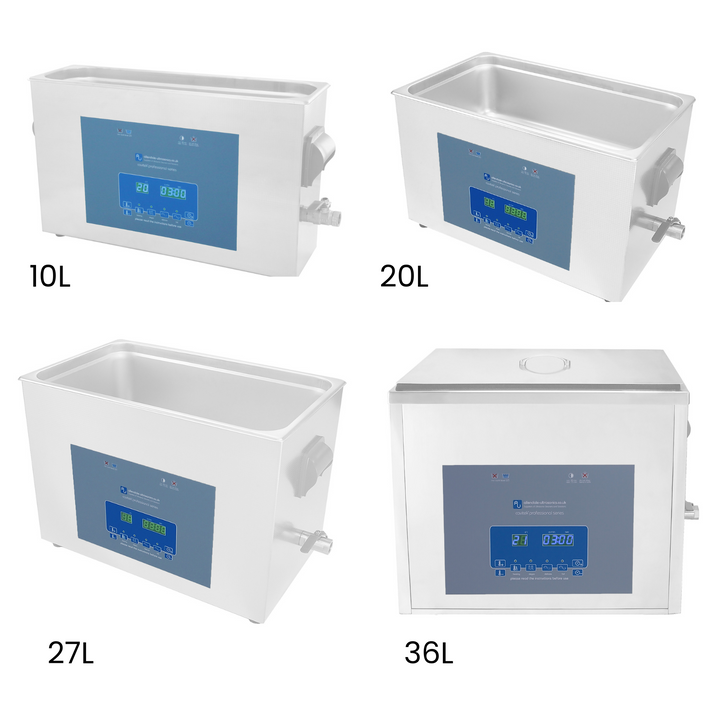

Compatible models: US-CU-CA-10L, US-CU-CA-20L, US-CU-CA-27L, US-CU-CA-36L

How to replace the front panel:

Switch off the ultrasonic cleaner at the mains supply and disconnect the mains lead. Ensure the cleaner is empty of fluid and has sufficiently cooled down.

Using a hot air gun or hair dryer, gently warm the old membrane. This will help to soften the adhesive and aid removal.

It should now be possible to start at one corner and peel the old membrane away.

Ideally, any remaining adhesive residue should be removed to ensure the new membrane can be fitted smoothly. Label removers and adhesive removers are available at DIY stores for this purpose.

Once the remaining adhesive has been removed, peel off the membrane backing, then carefully centre and adhere the membrane to the front of the cleaner.

It is important when aligning to ensure all LEDs and displays are visible and buttons are functional.
