Stock: Back-order
SKU: US-CU-XL-90L-40-1PH

90 Litre 3000W 40kHz Digital Control Single Phase Ultrasonic Cleaner

£2,006.37 Excl. VAT

£2,407.64 Incl. VAT

Add to Wishlist

Frequently Bought Together

Total price:£2,114.87
Description

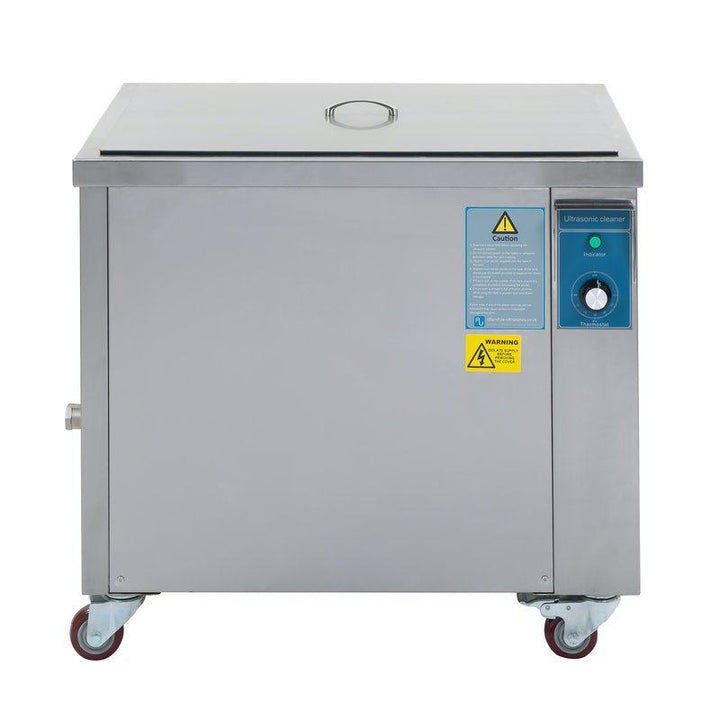

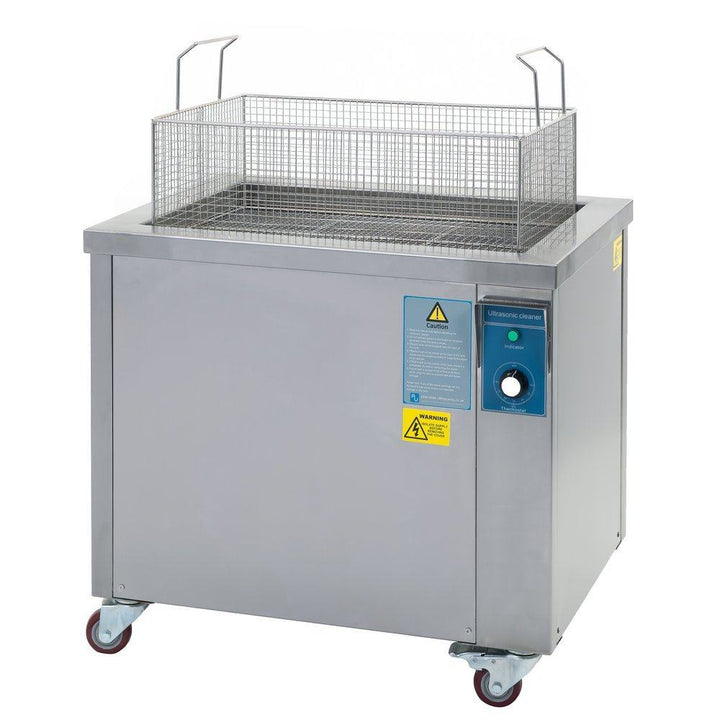

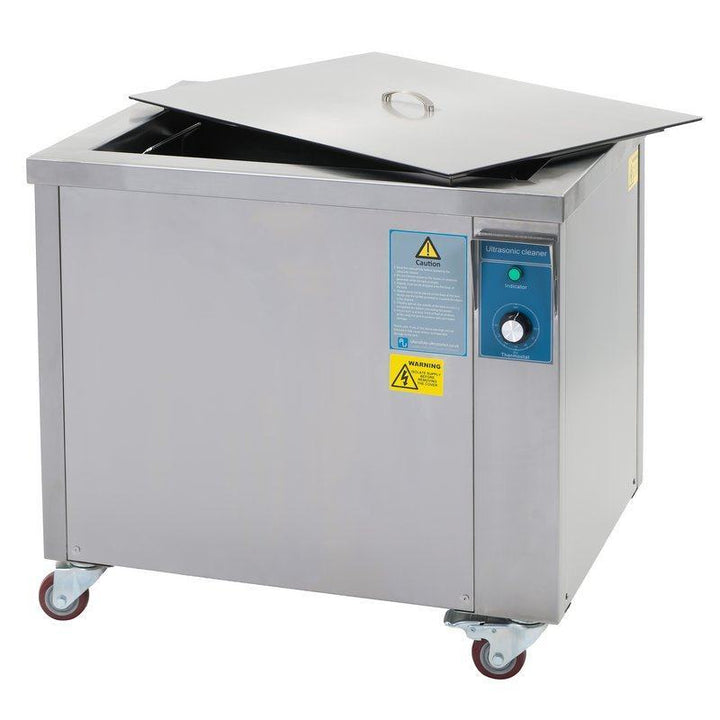

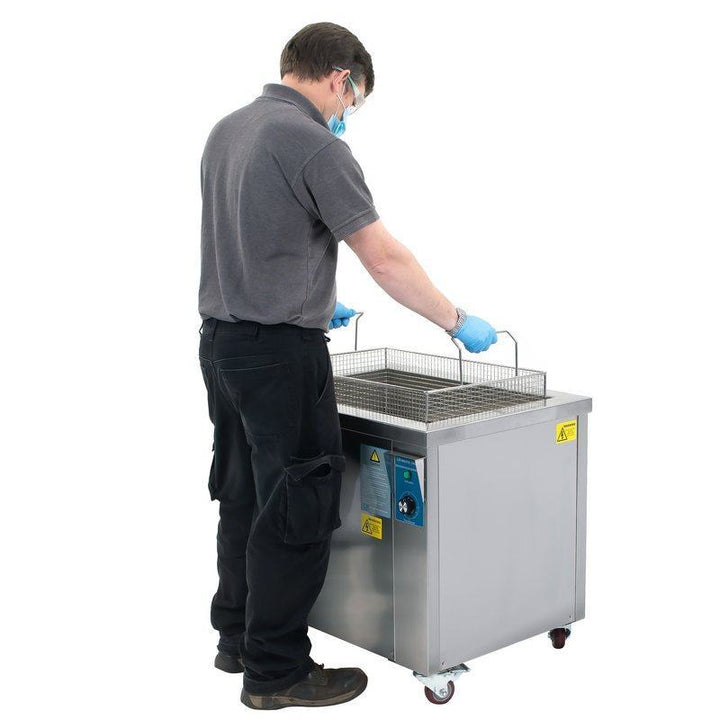

Built for precision, performance, and durability, this 90L floor-standing ultrasonic cleaner offers an effective solution for industrial, commercial, and professional environments where consistent, high-quality cleaning is essential. Utilising a 40kHz ultrasonic frequency, this unit delivers powerful yet gentle cleaning, ideal for delicate items or intricate components.

Key Product Features

40kHz Operating Frequency
Perfect for fast, general-purpose cleaning where surface detail and internal cavities need thorough, non-abrasive treatment.

Spacious 90L Tank Capacity
Suits medium-to-large parts or multiple small components, ideal for batch processing in high-throughput environments.

Adjustable Cleaning Parameters
Offers precise control with a 0–99 minute digital timer, variable ultrasonic power (10–100%), and pulse mode for degassing and fine cleaning. Adjustable cleaning temperature from 20–80°C for application flexibility.

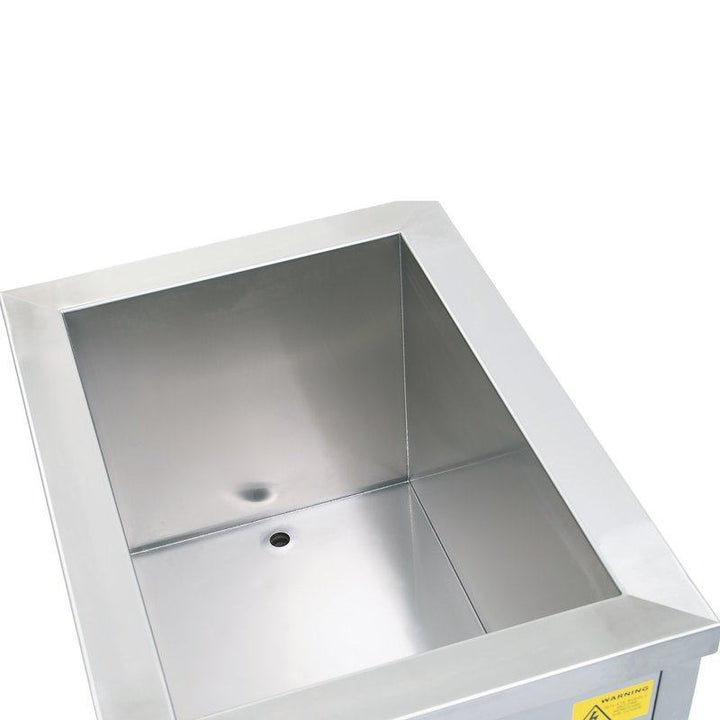

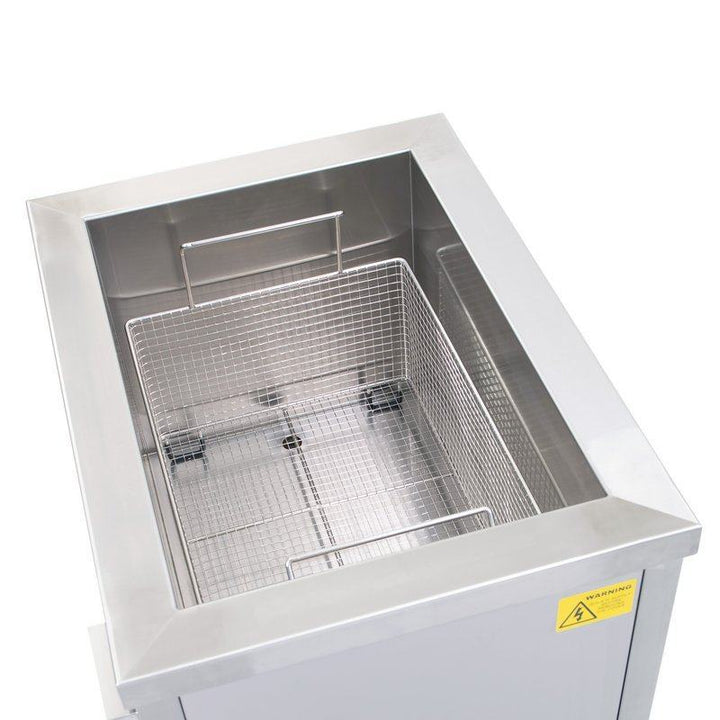

Heavy-Duty Stainless Steel Construction
2mm thick 304-grade folded and welded stainless steel tank and basket ensures structural integrity and long-lasting performance in harsh environments.

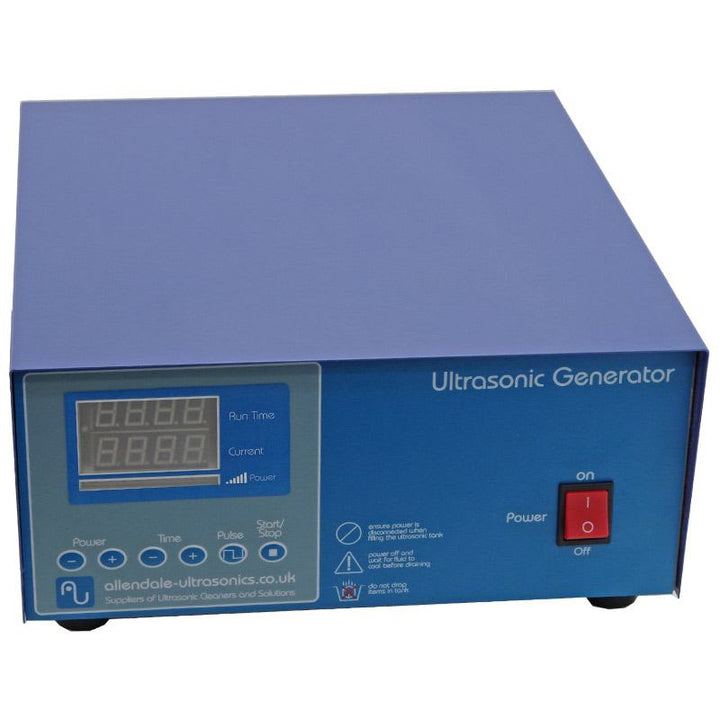

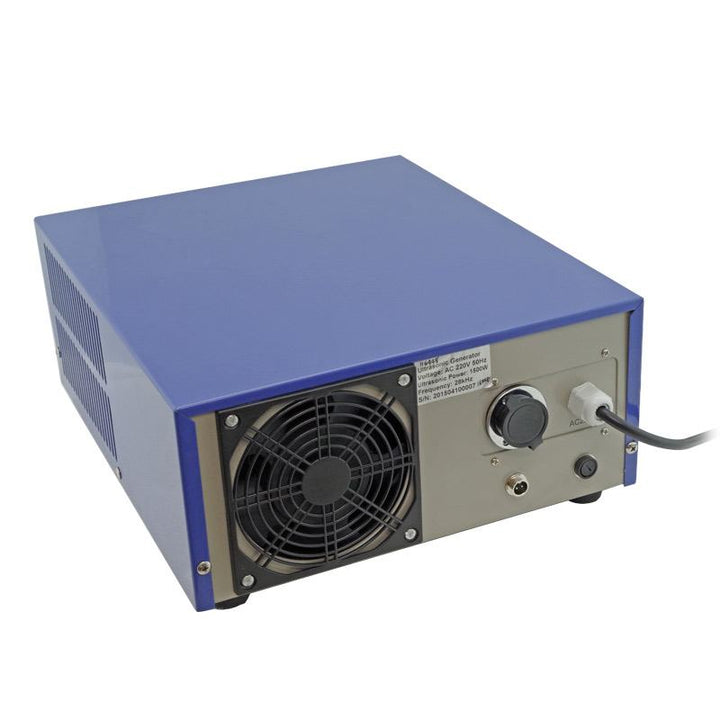

Remote Digital Ultrasonic Generator
The US-SP-XL-GEN-1800 generator features an intuitive digital interface and 2.7m connecting lead for easy positioning and operation.

Integrated Drainage System
A 1” BSP stainless steel drain valve makes fluid changes safe and efficient.

Mobility & Safe Operation
Caster wheels allow easy movement, while suspended cleaning avoids item contact with the tank base, improving cleaning uniformity.


Technical Specifications

Tank Volume: 90 Litres to brim

Ultrasonic Frequency: 40kHz

Ultrasonic Power: 1440W

Heater Power: 3000W

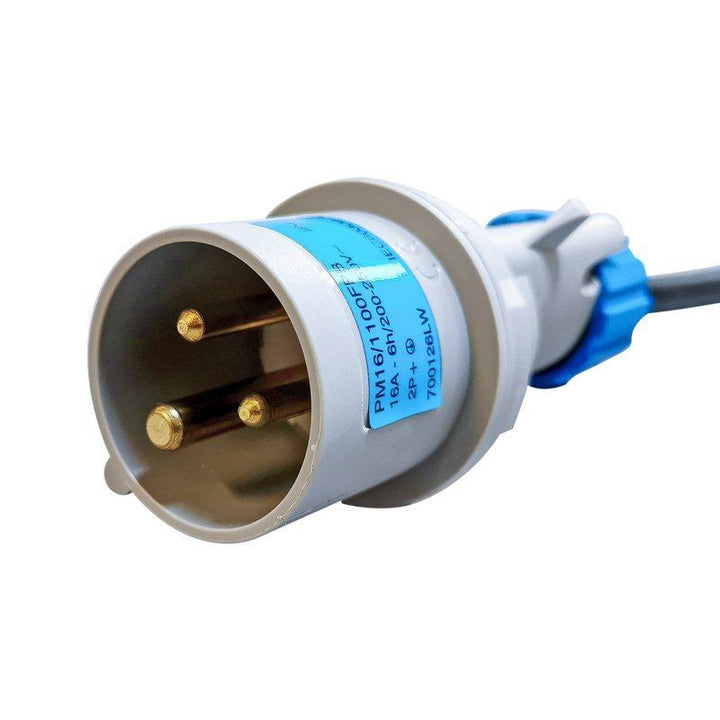

Power Supply: 230VAC 50–60Hz, 13A Single Phase

Bath Dimensions: L600mm x W400mm x H400mm (L23.62" x W15.75" x H15.75")

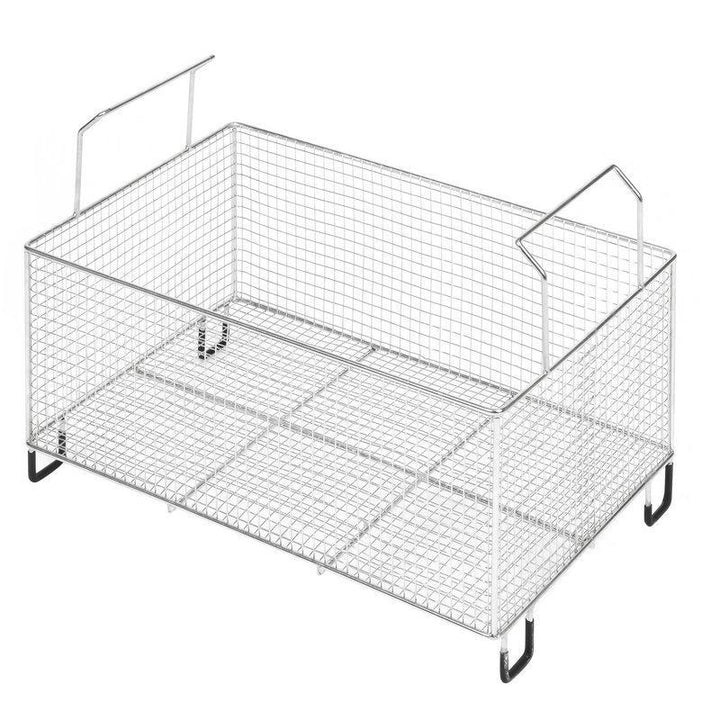

Basket Dimensions: L570mm x W370mm x H200mm (L22.44" x W14.57" x H7.87")

External Dimensions: L730mm x W530mm x H700mm (L28.74" x W20.87" x H27.56")


What’s Included

1 x XL Ultrasonic Cleaner (90L)

1 x 304 Grade Stainless Steel Lid

1 x 304 Grade Stainless Steel Basket

1 x US-SP-XL-GEN-1800 Digital Ultrasonic Generator

1 x 2.7m Interconnecting Generator Lead

1 x User Manual

1 x Protective Shipping Crate

Understand what product is right for you with our Educational Buyers Guide

Learn more about Allendale Group Ltd.

Specifications & Data Sheets
Product Dimensions
Basket Height 200mm
Basket Width 370mm
Basket Length 570mm
Product Specifications
Transducer Frequency (kHz) 40KHz
Bath Material Thickness (mm) 2
Transducer Power (Watts) 1440
Basket Included Yes
Heater Function Yes
Transducer Quantity 24
Watts per Litre Rating 20
Series Industrial
User Interface Digital Control
Sub Type Digital
Internal Length 600mm
Internal Width 400mm
Internal Height 400mm
User Manual View User Manual
Comparison Sheet
View Comparison Sheet
Barcode (GTIN): 5056202953007
Delivery Information

Couriers we use

  • Royal Mail
  • DPD
  • DHL
  • Palletways (large / heavy items)

Delivery Times

  • UK: 1-4 working days
  • Europe: 3-10 working days
  • International: 4-15 working days

Times are estimates and may vary

Cost

Cost of shipping can be calculated at checkout or within your cart, if no options appear please contact us

Warranty Information
  • 12 Month coverage from purchase date
  • Free repair or replacement for defective faulty products
  • Normal wear and tear is not covered

Eligibility

  • Products must be installed and used as per the user manual or documentation
  • Used only for its intended purpose
  • Accidental damage, misuse and resulting loss are excluded

Exclusions

Consumables are not covered, examples being batteries, solder tips and heating elements

For any issues or questions please contact us

Frequently Asked Questions

What can I clean with an ultrasonic cleaner?

Ultrasonic cleaners are suitable for a wide range of applications, including:


– Rings, watches, and delicate metalwork

– Nuts, bolts, carburettors, fuel injectors

– Scalpels, forceps, dental tools

– Glassware, beakers, test tubes

– Gun parts and casings

– Circuit boards (if fully dried after cleaning)

– Coins, model parts, and diving equipment

Unsure? Contact us below

How do I control the cleaning process?

Most ultrasonic cleaners come with adjustable temperature and timer controls. The temperature can range from 20-80°C, and the cleaning time typically varies from 0-20 minutes, depending on the level of dirt and the type of object being cleaned.

Do I need a cleaning basket?

Yes, using a wire basket (usually sold separately) is recommended. It helps to keep items suspended in the tank, preventing direct contact with the bottom, which improves cleaning efficiency and protects the cleaner.

Can I put multiple items in an ultrasonic cleaner at once?

Yes, but avoid overcrowding. Items should be spaced apart so that the cleaning solution can circulate freely around them for an even clean. Using a wire basket helps to keep items properly positioned.

Can I use tap water in my ultrasonic cleaner?

Yes, but distilled or deionised water is always recommended, especially for delicate items like jewellery or medical tools, as it reduces mineral deposits that could be left behind.

Do ultrasonic cleaners heat the water?

Yes, many of our models include a built-in heating element (20-80°C) to improve cleaning effectiveness, especially for removing grease, oil, and hardened contaminants. Please check the product description

Do your ultrasonic cleaner come with a warranty?

Standard Warranty: All products are guaranteed for one year from the date of purchase (unless otherwise specified).

During the warranty period, we will repair or replace any defective products at no charge (return-to-base warranty), excluding normal wear and tear.

How do I know if an ultrasonic cleaner is right for me?

If you need a fast, effective, and hands-free way to clean delicate or intricate items, an ultrasonic cleaner is a great investment. Consider the size, power, frequency (40KHz is ideal for general use), and heating options before purchasing.

What are internal tank dimensions, and why do they matter?

The internal tank measurements determine the maximum size of objects that can be cleaned. Always check your item dimensions to ensure they fit comfortably in the tank.

What does ultrasonic power mean?

Ultrasonic power (200W) refers to how strong the cleaning waves are. Higher power means stronger vibrations in the water, which create tiny bubbles that clean the dirt off your items. A 200W ultrasonic power is strong enough to clean heavy dirt, but still gentle enough for more delicate items, like jewellery.

What does heater power mean?

Heater power (400W) means the strength of the heater inside the cleaner. The more heater power, the faster the water can get hot. Heating the water helps break down grease and sticky substances faster, so your cleaning job is done quicker and more efficiently.

What is the temperature range, and why does it matter?

The temperature range (0-80°C) tells you how hot the cleaning solution can get. Hotter water helps clean things like grease, oil, or sticky dirt more easily. So, if you need to clean something that's really dirty, you can turn up the heat. On the other hand, if you're cleaning something delicate, you can keep the water cooler to avoid damage.

What does frequency mean?

Frequency (40kHz) refers to the number of sound waves that the ultrasonic cleaner sends out each second. A 40kHz frequency is the most common and means the cleaner can work quickly and effectively without being too rough. It’s great for cleaning delicate things like jewellery but also strong enough for tougher dirt on things like tools.
