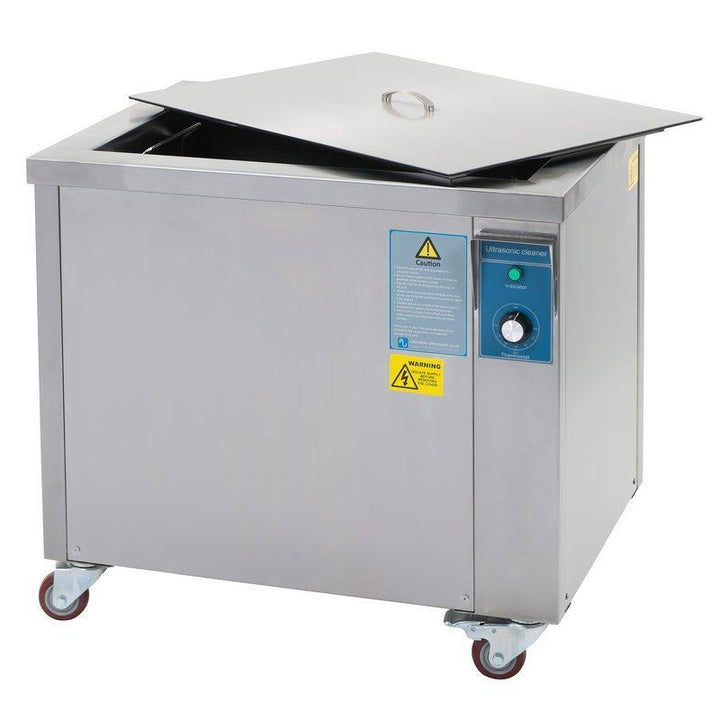

90 Litre 3000W 28kHz Digital Control Single Phase Ultrasonic Cleaner

Engineered for heavy-duty applications, this 90L floor-standing ultrasonic cleaner delivers high-efficiency cleaning using a powerful 28kHz ultrasonic frequency, suited to rapid cleaning of larger or heavily contaminated components. Designed to serve both industrial professionals and commercial users, this robust unit combines precision, consistency, and ease of use.

Key Product Benefits

28kHz Ultrasonic Frequency
Lower frequency delivers more aggressive cavitation, making it ideal for removing tough contaminants such as oil, carbon deposits, grease, rust, and polishing residues.

Large 90L Capacity
Generously sized to accommodate multiple parts or bulky items, streamlining workflows for busy workshops or production lines.

Advanced Digital Control
Remotely mounted ultrasonic generator offers a digital display with 0–99 minute cycle timer, adjustable ultrasonic power (10–100%) and pulse function for degassing and precision cleaning.

Temperature Adjustable (20–80°C)
Heat enhances cleaning efficacy, ideal for stubborn residues or time-sensitive applications.

Industrial-Grade Stainless Steel Construction
Constructed from 2mm thick, 304-grade folded and welded stainless steel to ensure durability, corrosion resistance, and long service life.

Suspended Cleaning Capability
Prevents contact with the tank base, protecting delicate components and ensuring uniform cleaning.

Effortless Fluid Management
Fitted with a 1” BSP stainless steel drain valve for safe, clean fluid changes.

Easy Mobility
Integrated caster wheels make it easy to move the unit between workstations or clean-down areas.

Specifications

Tank Volume: 90 Litres to brim

Ultrasonic Frequency: 28kHz

Ultrasonic Power: 1440W

Heater Power: 3000W

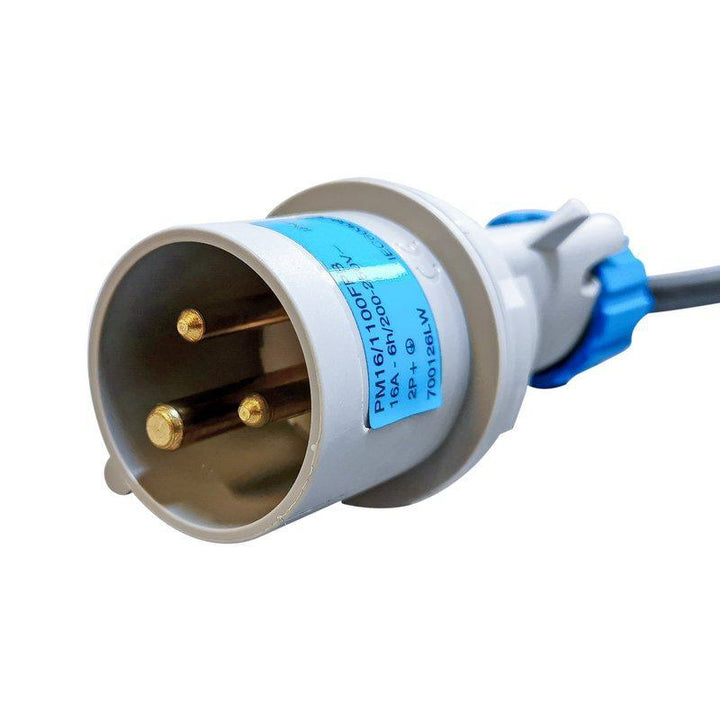

Power Supply: 230VAC 50–60Hz, Single Phase, 13A

Bath Dimensions: L600mm x W400mm x H400mm (L23.62" x W15.75" x H15.75")

Basket Dimensions: L570mm x W370mm x H200mm (L22.44" x W14.57" x H7.87")

External Dimensions: L730mm x W530mm x H700mm (L28.74" x W20.87" x H27.56")

External Unit Size: 790mm (L) x 610mm (W) x 710mm (H)

What’s included

1 x XL Ultrasonic Cleaner (90L Capacity)

1 x 304 Grade Stainless Steel Lid

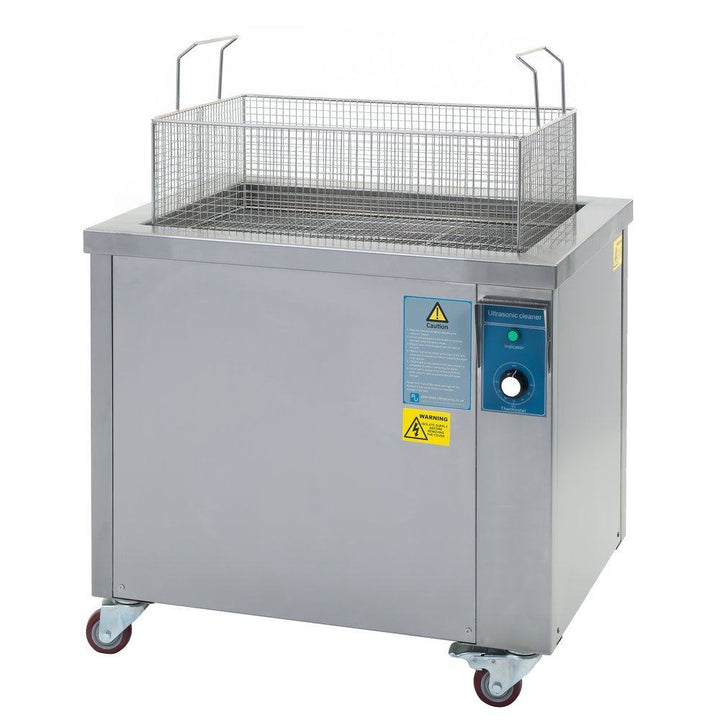

1 x 304 Grade Stainless Steel Basket

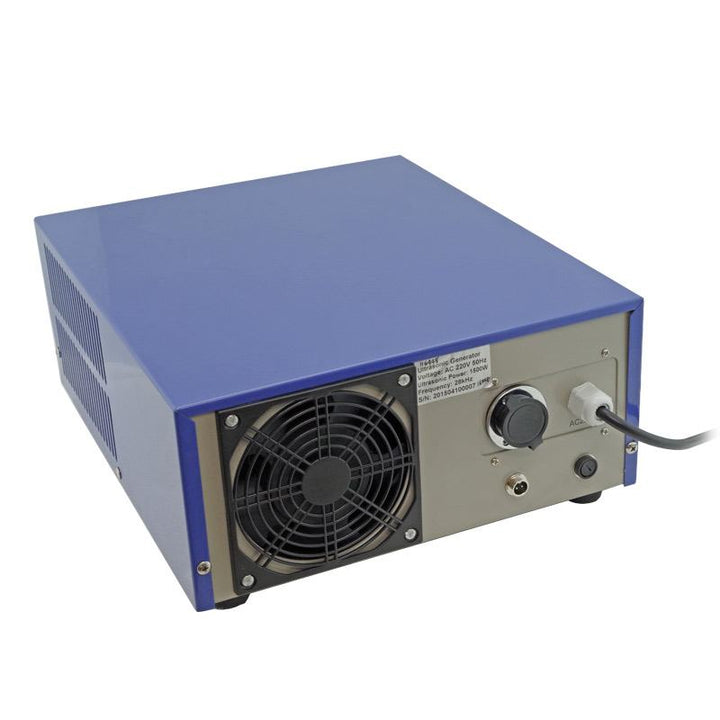

1 x US-SP-XL-GEN-1800 Ultrasonic Generator

1 x 2.7m Generator Interconnect Lead

1 x User Manual

1 x Robust Shipping Crate
