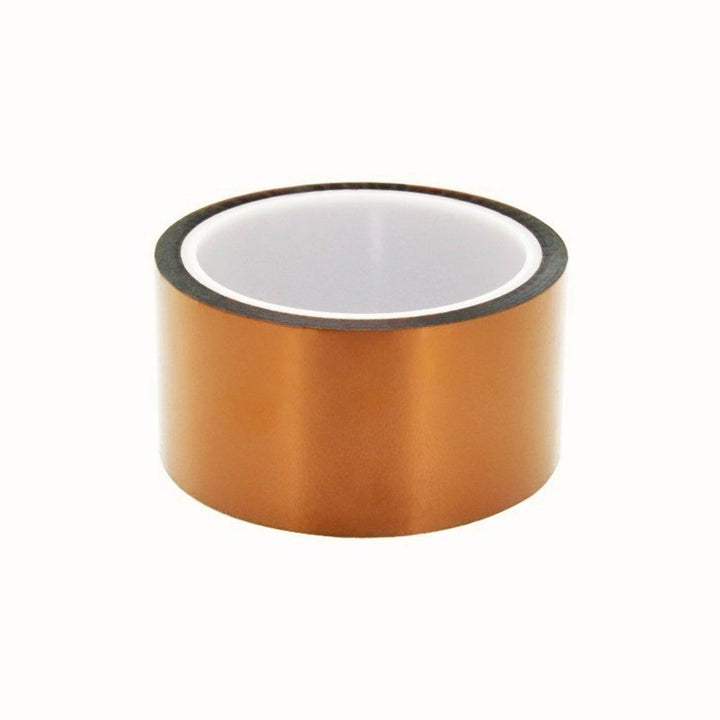

50mm Wide High Temperature Polyimide Masking Tape

• Silicone adhesive backed
• 33m long reel, backing thickness - 0.025mm, tape thickness - 0.060mm
• High-temperature tape - heat-resistant to a maximum temperature of 260°C
• Suitable for applications such as PCB masking, high-temperature clamping, keypad and membrane switch applications, surface protection, splicing of silicone papers and films, powder coating masking and electroplating
• Low residue on removal
• Colour - Amber

50mm wide high temperature polyimide tape.

Applications: PCB masking, high-temperature clamping, keypad and membrane switch applications, surface protection, splicing of silicone papers and films, powder coating masking and electroplating.

Features: Employs a proprietary technology that results in extremely low electrostatic discharge at unwind and removal form SUS. Conventional polyimide tape typically generate over 10,000 volts during use which can damage electronic components. The low static properties of our tape can eliminate circuit board degradation.

Storage Environment: Store under normal conditions of 10°C. to 30°C. and 40 to 70% relative humidity in the original packaging.

Key Specifications

Technical Data:

Backing thickness_ 0.025mm

Total Tape thickness_ 0.060mm

Adhesion to steel: 1.4N/cm - test method GB-T2972

Tensile strength at break: 58N/cm - test method GB-T7753

Elongation at break: 60% - test method GB-T7753

Upmost use temperature: 260°C

Surface resistance:  10 6~8 ohms

Removal rom roll: <100V

Static charge:

From SUS: <50V

Dielectric strength: 4000 Volts - test method GB/T7752-87

Thermal conductivity: =0.12 W/m.K

Product Contains

Ingredient C.A.S. No % by Wt

Polyimide backing 25038-81-7 99.40%

MQ resin 56275-01-5 0.42%

Siloxanes and silicones 68083-14-7 0.18

Not classified as hazardous to users.
