Stock: In Stock
SKU: US-CU-XL-288L-40KHZ

288 Litre 6000W 40kHz Digital Control Ultrasonic Cleaner

£4,090.44 Excl. VAT

£4,908.53 Incl. VAT

Add to Wishlist
Order in the next [totalHours] hrs %M mins and get it as soon as

Frequently Bought Together

Total price:£4,198.94
Description

The 288L floor-standing industrial ultrasonic cleaner is equipped with a 40kHz operating frequency, offering rapid and effective cleaning for large or high-volume items. With 3600W of ultrasonic power and 6000W of heating power, this cleaner excels in performance, ensuring thorough and efficient cleaning. The unit comes with a remotely positioned ultrasonic generator, providing adjustable temperature (20-80°C), variable power control (10-100%), and pulse function for delicate cleaning tasks. The robust 304-grade stainless steel bath features a 1” BSP drain valve for easy fluid removal.


Key Features

40kHz Ultrasonic Frequency
Delivers powerful cleaning action for general and delicate cleaning.

Massive 288 Litre Capacity
Ideal for cleaning large objects or handling high quantities of smaller components.

Two Remotely Positionable Ultrasonic Generators
2 x US-SP-XL-GEN-1800 generators with digital displays, cycle timers, and pulse functions, allowing precise control.

Adjustable Temperature from 20–80°C
Versatile temperature settings to optimise the cleaning process for various materials.

Durable 304 Grade Stainless Steel Construction
The 2mm thick stainless-steel bath ensures long-term reliability and superior resistance.

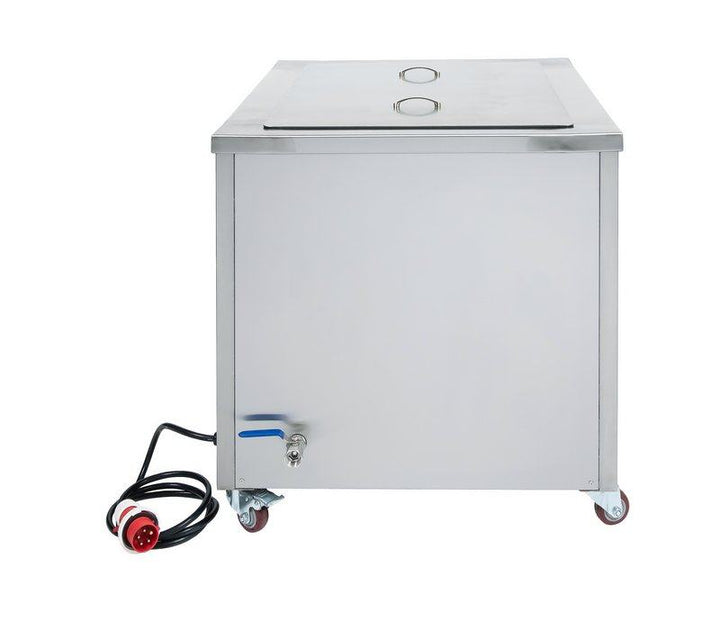

1” BSP Drain Valve
Convenient fluid removal for minimal mess and easy disposal.


Technical Specifications

Tank Volume: 288 Litres (to brim)

Bath Dimensions: L800mm x W600mm x H600mm (L31.5" x W23.62" x H19.69")

Basket Dimensions: L770mm x W570mm x H400mm (L30.32" x W22.44" H15.75")

External Dimensions: L1024mm x W860mm x H850mm (L40.31" x W33.86" x H33.46")

Ultrasonic Frequency: 40kHz

Ultrasonic Power: 3600W

Heating Power: 6000W

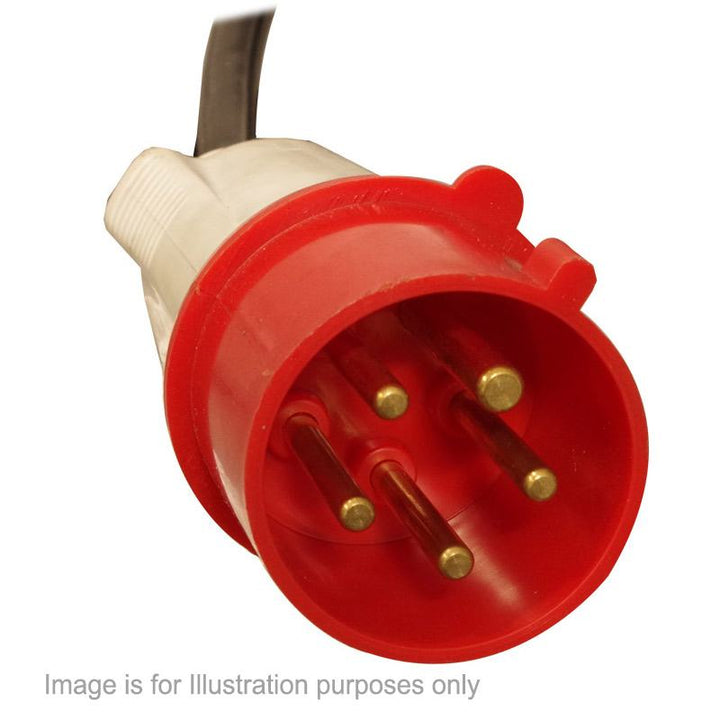

Power Supply: 3 Phase, 26A, 400VAC 50–60Hz

Generator Type: 2 x US-SP-XL-GEN-1800


What’s Included

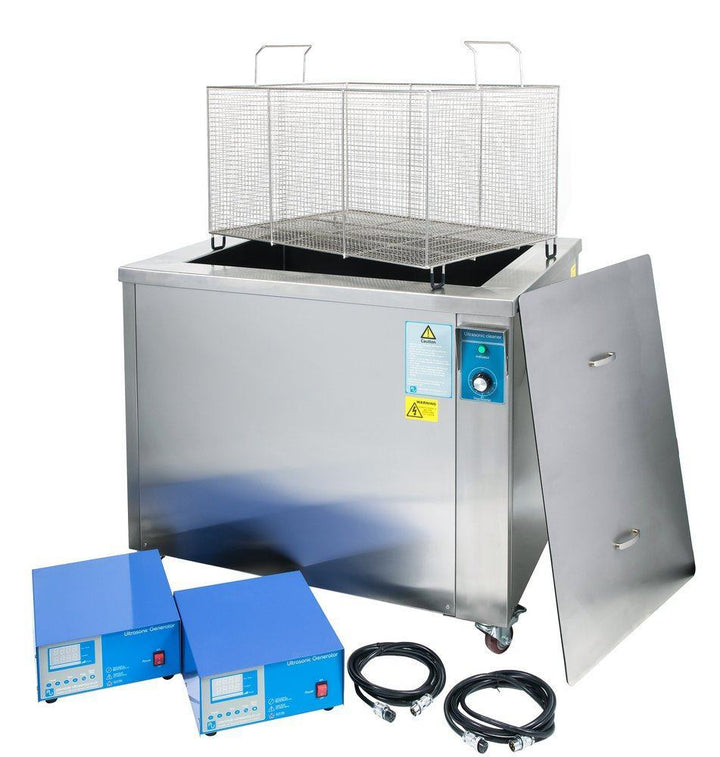

1 x 288L Floor-Standing Ultrasonic Cleaner

1 x Stainless Steel Lid (304 Grade)

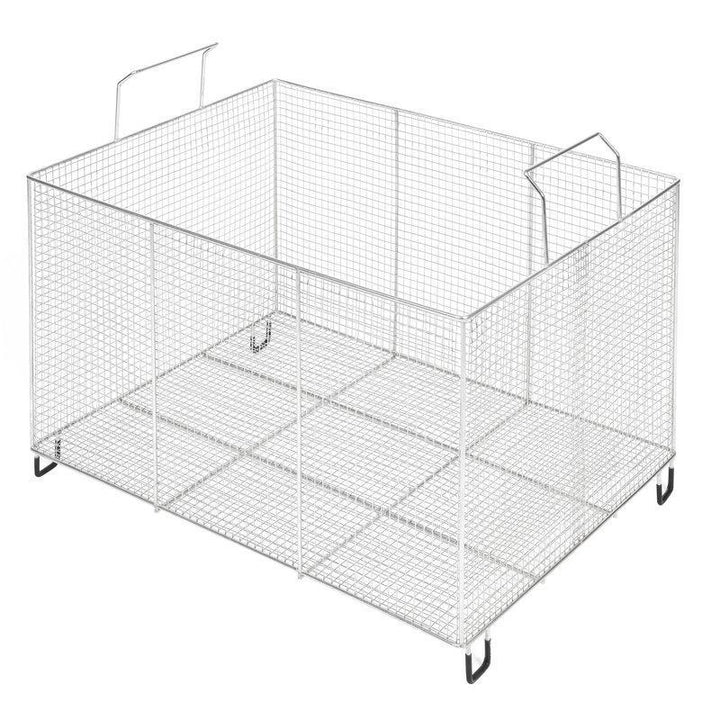

1 x Stainless Steel Cleaning Basket (304 Grade)

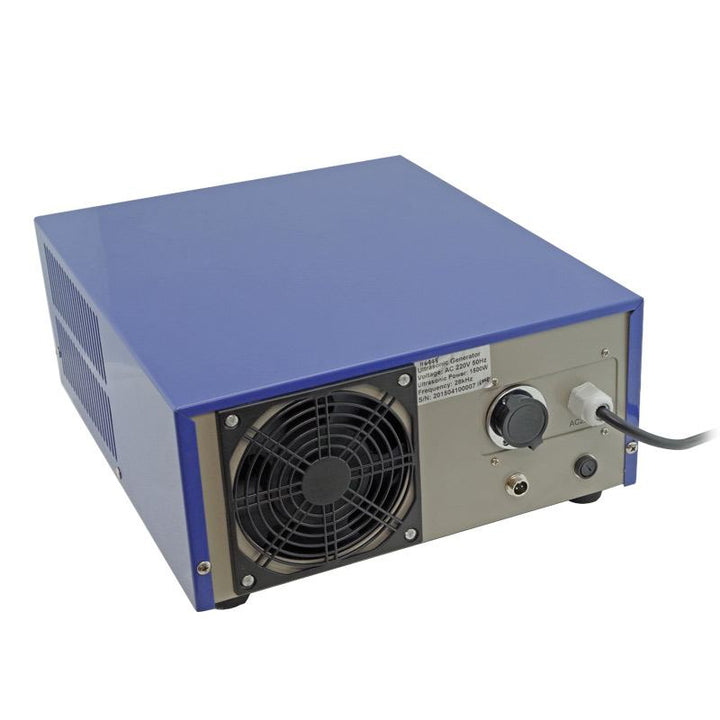

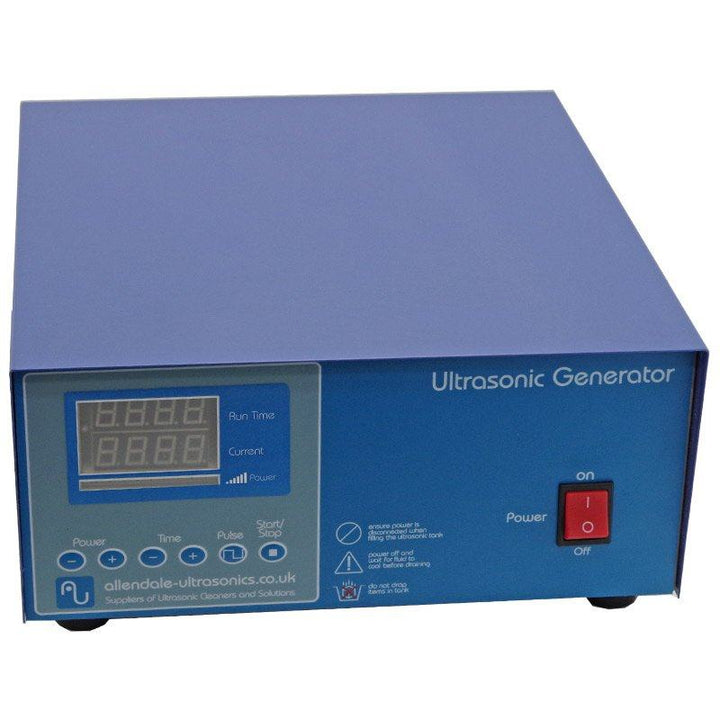

2 x US-SP-XL-GEN-1800 Digital Ultrasonic Generators

1 x 2.7m Interconnecting Generator Cable

1 x User Manual

1 x Industrial-Grade Shipping Crate

Understand what product is right for you with our Educational Buyers Guide

Learn more about Allendale Group Ltd.

Specifications & Data Sheets
Product Dimensions
Basket Height 400mm
Basket Width 570mm
Basket Length 770mm
Product Specifications
Transducer Frequency (kHz) 40KHz
Bath Material Thickness (mm) 2
Transducer Power (Watts) 3600
Basket Included Yes
Heater Function Yes
Transducer Quantity 60
Watts per Litre Rating 19
Series Industrial
User Interface Digital Control
Sub Type Digital
Internal Length 800mm
Internal Width 600mm
Internal Height 600mm
User Manual View User Manual
Comparison Sheet
View Comparison Sheet
Barcode (GTIN): 5055396162509
Delivery Information

Couriers we use

  • Royal Mail
  • DPD
  • DHL
  • Palletways (large / heavy items)

Delivery Times

  • UK: 1-4 working days
  • Europe: 3-10 working days
  • International: 4-15 working days

Times are estimates and may vary

Cost

Cost of shipping can be calculated at checkout or within your cart, if no options appear please contact us

Warranty Information
  • 12 Month coverage from purchase date
  • Free repair or replacement for defective faulty products
  • Normal wear and tear is not covered

Eligibility

  • Products must be installed and used as per the user manual or documentation
  • Used only for its intended purpose
  • Accidental damage, misuse and resulting loss are excluded

Exclusions

Consumables are not covered, examples being batteries, solder tips and heating elements

For any issues or questions please contact us

Frequently Asked Questions

What can I clean with an ultrasonic cleaner?

Ultrasonic cleaners are suitable for a wide range of applications, including:


– Rings, watches, and delicate metalwork

– Nuts, bolts, carburettors, fuel injectors

– Scalpels, forceps, dental tools

– Glassware, beakers, test tubes

– Gun parts and casings

– Circuit boards (if fully dried after cleaning)

– Coins, model parts, and diving equipment

Unsure? Contact us below

How do I control the cleaning process?

Most ultrasonic cleaners come with adjustable temperature and timer controls. The temperature can range from 20-80°C, and the cleaning time typically varies from 0-20 minutes, depending on the level of dirt and the type of object being cleaned.

Do I need a cleaning basket?

Yes, using a wire basket (usually sold separately) is recommended. It helps to keep items suspended in the tank, preventing direct contact with the bottom, which improves cleaning efficiency and protects the cleaner.

Can I put multiple items in an ultrasonic cleaner at once?

Yes, but avoid overcrowding. Items should be spaced apart so that the cleaning solution can circulate freely around them for an even clean. Using a wire basket helps to keep items properly positioned.

Can I use tap water in my ultrasonic cleaner?

Yes, but distilled or deionised water is always recommended, especially for delicate items like jewellery or medical tools, as it reduces mineral deposits that could be left behind.

Do ultrasonic cleaners heat the water?

Yes, many of our models include a built-in heating element (20-80°C) to improve cleaning effectiveness, especially for removing grease, oil, and hardened contaminants. Please check the product description

Do your ultrasonic cleaner come with a warranty?

Standard Warranty: All products are guaranteed for one year from the date of purchase (unless otherwise specified).

During the warranty period, we will repair or replace any defective products at no charge (return-to-base warranty), excluding normal wear and tear.

How do I know if an ultrasonic cleaner is right for me?

If you need a fast, effective, and hands-free way to clean delicate or intricate items, an ultrasonic cleaner is a great investment. Consider the size, power, frequency (40KHz is ideal for general use), and heating options before purchasing.

What are internal tank dimensions, and why do they matter?

The internal tank measurements determine the maximum size of objects that can be cleaned. Always check your item dimensions to ensure they fit comfortably in the tank.

What does ultrasonic power mean?

Ultrasonic power (200W) refers to how strong the cleaning waves are. Higher power means stronger vibrations in the water, which create tiny bubbles that clean the dirt off your items. A 200W ultrasonic power is strong enough to clean heavy dirt, but still gentle enough for more delicate items, like jewellery.

What does heater power mean?

Heater power (400W) means the strength of the heater inside the cleaner. The more heater power, the faster the water can get hot. Heating the water helps break down grease and sticky substances faster, so your cleaning job is done quicker and more efficiently.

What is the temperature range, and why does it matter?

The temperature range (0-80°C) tells you how hot the cleaning solution can get. Hotter water helps clean things like grease, oil, or sticky dirt more easily. So, if you need to clean something that's really dirty, you can turn up the heat. On the other hand, if you're cleaning something delicate, you can keep the water cooler to avoid damage.

What does frequency mean?

Frequency (40kHz) refers to the number of sound waves that the ultrasonic cleaner sends out each second. A 40kHz frequency is the most common and means the cleaner can work quickly and effectively without being too rough. It’s great for cleaning delicate things like jewellery but also strong enough for tougher dirt on things like tools.
