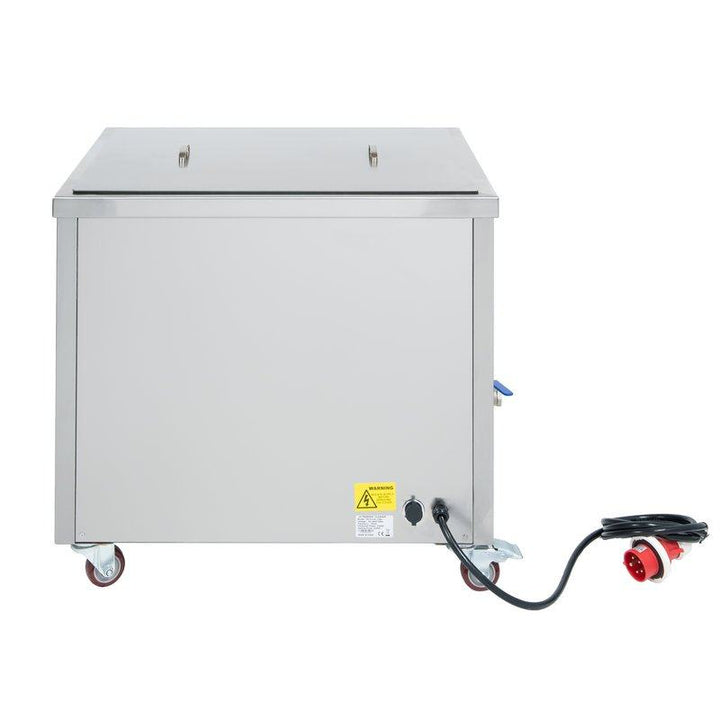

145 Litre 6000W 40kHz Digital Control Ultrasonic Cleaner

£2,868.17 Excl. VAT

£3,441.80 Incl. VAT

Add to Wishlist
Order in the next [totalHours] hrs %M mins and get it as soon as

Frequently Bought Together

Total price:£2,960.17
Description

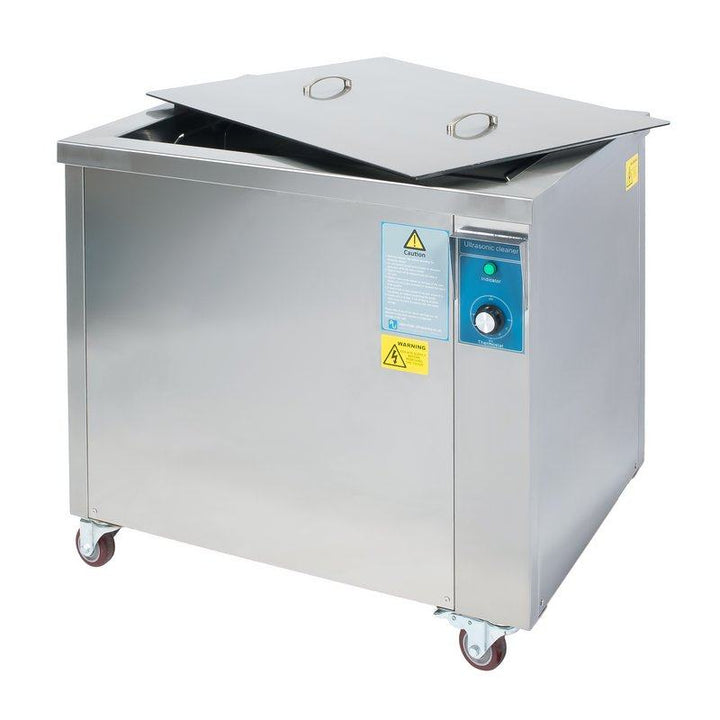

    The 145L floor-standing industrial ultrasonic cleaner features a 40kHz operating frequency for fast, efficient cleaning. With 2160W of ultrasonic power and 6000W of heating power, it’s designed for high-performance cleaning of various components. The unit offers adjustable temperature settings (20-80°C) and comes with a digital ultrasonic generator with a 0-99-minute timer, pulse mode, and variable power control. Built with a 304-grade stainless steel bath and a 1” BSP drain valve, this ultrasonic cleaner is perfect for industries that require high-volume, repeatable, and effective cleaning.


    Key Features

    40kHz Ultrasonic Frequency
    Fast and thorough general cleaning, ideal for medium to heavy contamination.

    Large 145 Litre Capacity
    Perfect for cleaning large items or handling high volumes of small components.

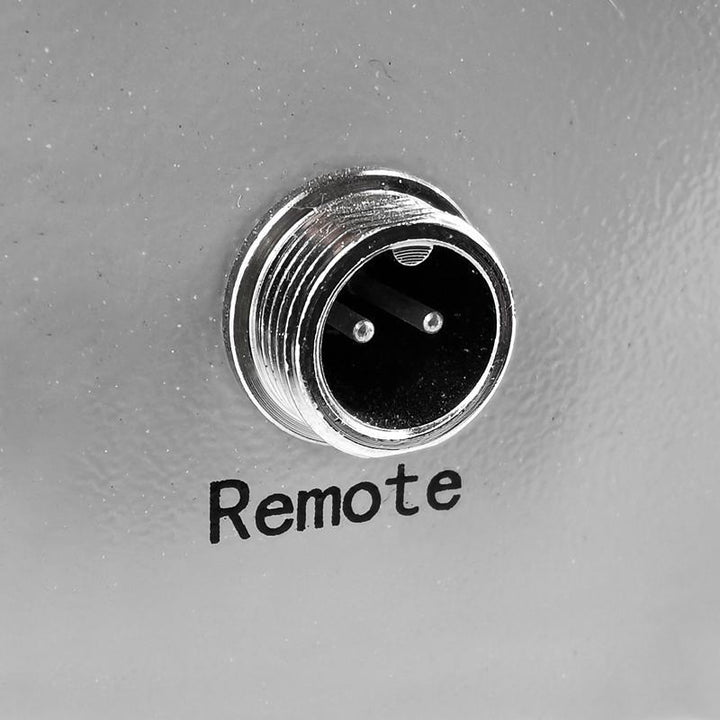

    Remote-Controlled Ultrasonic Generator

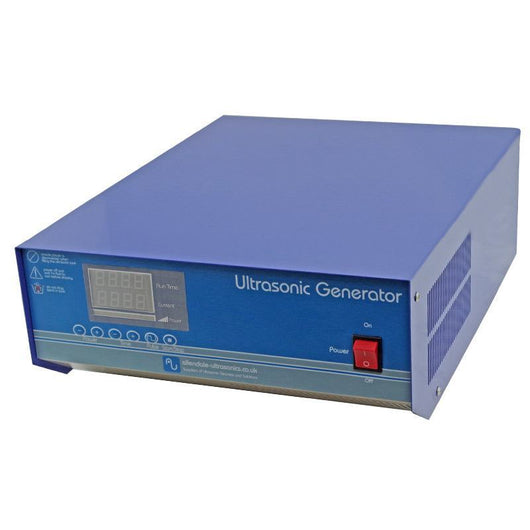

    US-SP-XL-GEN-2400 generator with digital display, cycle timer, variable power (10-100%), and pulse function for precise control.

    Temperature Adjustable from 20–80°C
    Offers flexible temperature control to optimise cleaning efficiency.

    Sturdy 304 Grade Stainless Steel Construction
    Durable 2mm thick bath, ensuring long-term reliability and resistance to wear.

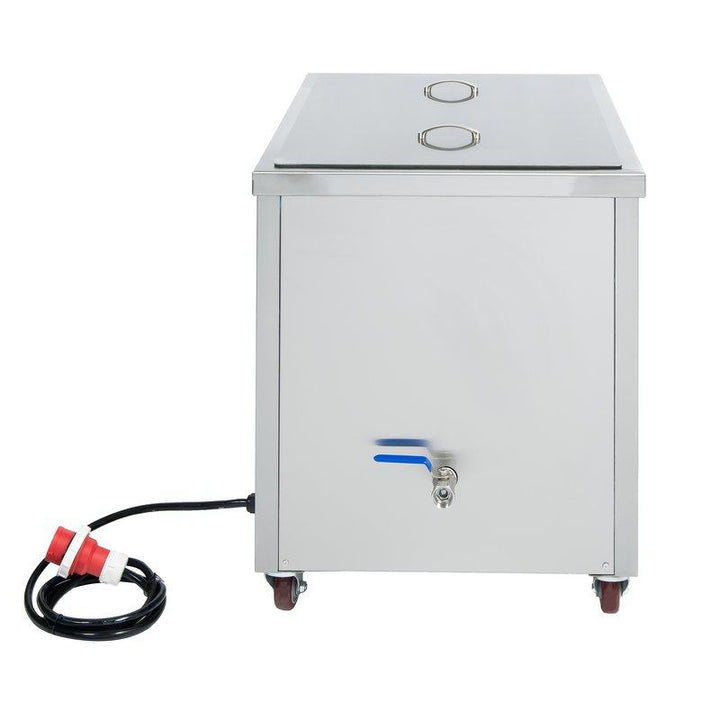

    1” BSP Drain Valve
    Easy fluid removal for convenience and minimal mess.

    Technical Specifications


    Tank Volume: 145 Litres (to brim)

    Bath Dimensions: L700mm x W500mm x H445mm (L27.56" x W19.69" x H17.52")

    Basket Dimensions: L680mm x W480mm x H310mm (L26.77" x W18.9" x H12.2")

    External Dimensions: L900mm x W700mm x H770mm (L35.43" x W27.56" x H30.32")

    Ultrasonic Frequency: 40kHz

    Ultrasonic Power: 2160W

    Heating Power: 6000W

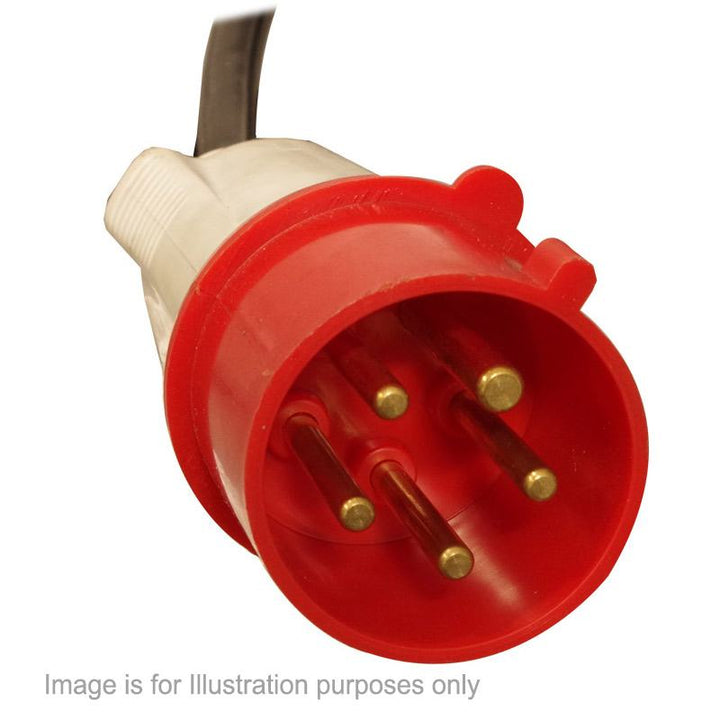

    Power Supply: 3 Phase, 26A, 400VAC 50–60Hz

    Generator Type: 1 x US-SP-XL-GEN-2400

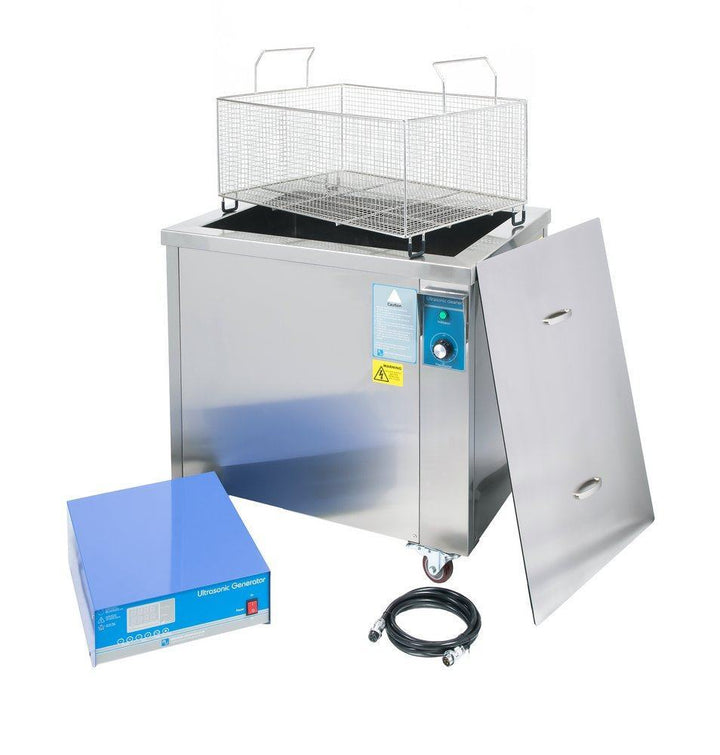

    What’s Included

    1 x 145L Floor-Standing Ultrasonic Cleaner

    1 x Stainless Steel Lid (304 Grade)

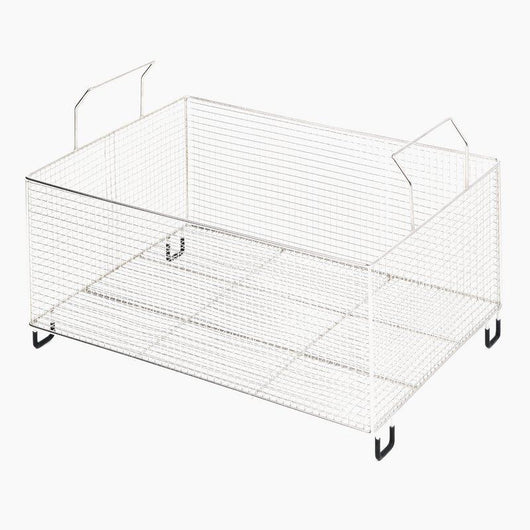

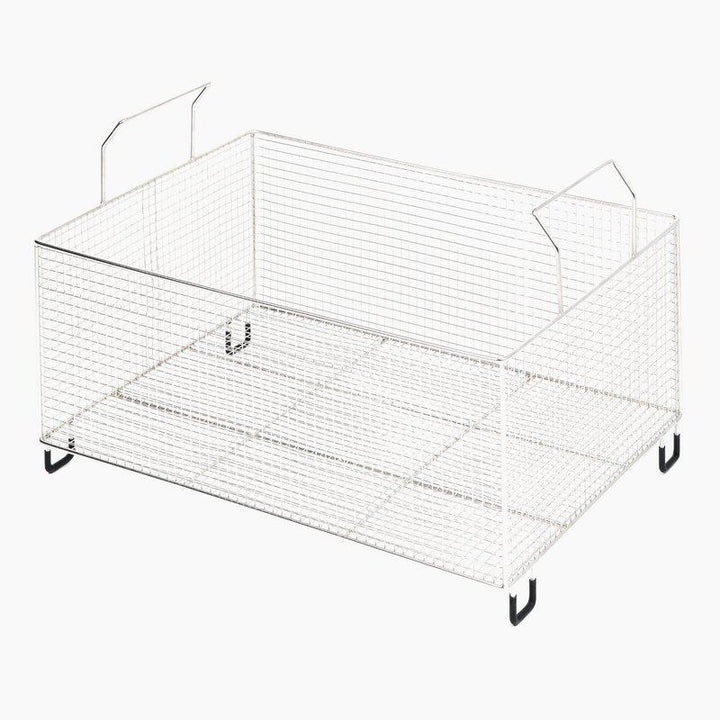

    1 x Stainless Steel Cleaning Basket (304 Grade)

    1 x US-SP-XL-GEN-2400 Digital Ultrasonic Generator

    1 x 2.7m Interconnecting Generator Cable

    1 x User Manual

    1 x Industrial-Grade Shipping Crate

    Understand what product is right for you with our Educational Buyers Guide

    Learn more about Allendale Group Ltd.

    Specifications & Data Sheets
    Product Dimensions
    Basket Height 250mm
    Basket Width 480mm
    Basket Length 680mm
    Product Specifications
    Transducer Frequency (kHz) 40KHz
    Bath Material Thickness (mm) 2
    Transducer Power (Watts) 2160
    Basket Included Yes
    Heater Function Yes
    Transducer Quantity 36
    Watts per Litre Rating 19
    Series Industrial
    User Interface Digital Control
    Sub Type Digital
    Internal Length 700mm
    Internal Width 500mm
    Internal Height 450mm
    User Manual View User Manual
    Comparison Sheet
    View Comparison Sheet
    Barcode (GTIN): 5055396162486
    Delivery Information

    Couriers we use

    • Royal Mail
    • DPD
    • DHL
    • Palletways (large / heavy items)

    Delivery Times

    • UK: 1-4 working days
    • Europe: 3-10 working days
    • International: 4-15 working days

    Times are estimates and may vary

    Cost

    Cost of shipping can be calculated at checkout or within your cart, if no options appear please contact us

    Warranty Information
    • 12 Month coverage from purchase date
    • Free repair or replacement for defective faulty products
    • Normal wear and tear is not covered

    Eligibility

    • Products must be installed and used as per the user manual or documentation
    • Used only for its intended purpose
    • Accidental damage, misuse and resulting loss are excluded

    Exclusions

    Consumables are not covered, examples being batteries, solder tips and heating elements

    For any issues or questions please contact us

    Frequently Asked Questions

    What can I clean with an ultrasonic cleaner?

    Ultrasonic cleaners are suitable for a wide range of applications, including:


    – Rings, watches, and delicate metalwork

    – Nuts, bolts, carburettors, fuel injectors

    – Scalpels, forceps, dental tools

    – Glassware, beakers, test tubes

    – Gun parts and casings

    – Circuit boards (if fully dried after cleaning)

    – Coins, model parts, and diving equipment

    Unsure? Contact us below

    How do I control the cleaning process?

    Most ultrasonic cleaners come with adjustable temperature and timer controls. The temperature can range from 20-80°C, and the cleaning time typically varies from 0-20 minutes, depending on the level of dirt and the type of object being cleaned.

    Do I need a cleaning basket?

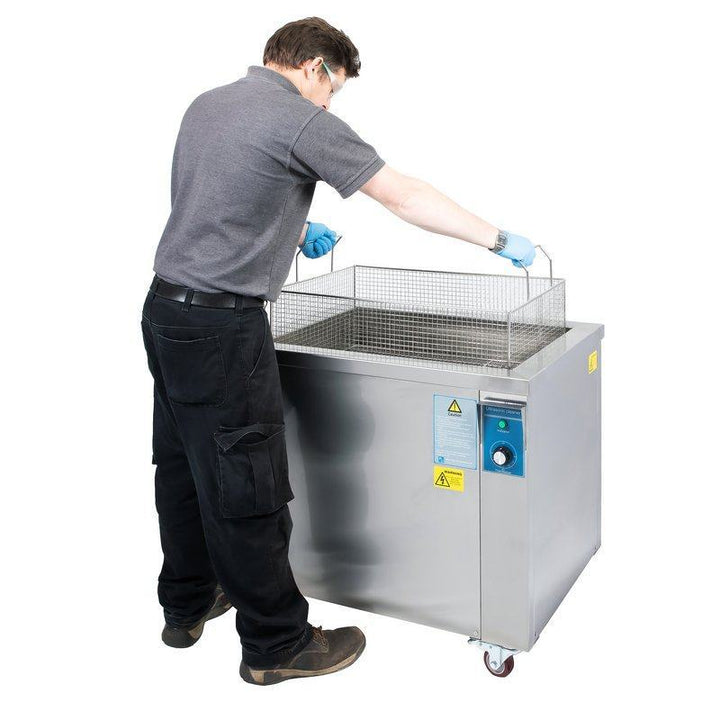

    Yes, using a wire basket (usually sold separately) is recommended. It helps to keep items suspended in the tank, preventing direct contact with the bottom, which improves cleaning efficiency and protects the cleaner.

    Can I put multiple items in an ultrasonic cleaner at once?

    Yes, but avoid overcrowding. Items should be spaced apart so that the cleaning solution can circulate freely around them for an even clean. Using a wire basket helps to keep items properly positioned.

    Can I use tap water in my ultrasonic cleaner?

    Yes, but distilled or deionised water is always recommended, especially for delicate items like jewellery or medical tools, as it reduces mineral deposits that could be left behind.

    Do ultrasonic cleaners heat the water?

    Yes, many of our models include a built-in heating element (20-80°C) to improve cleaning effectiveness, especially for removing grease, oil, and hardened contaminants. Please check the product description

    Do your ultrasonic cleaner come with a warranty?

    Standard Warranty: All products are guaranteed for one year from the date of purchase (unless otherwise specified).

    During the warranty period, we will repair or replace any defective products at no charge (return-to-base warranty), excluding normal wear and tear.

    How do I know if an ultrasonic cleaner is right for me?

    If you need a fast, effective, and hands-free way to clean delicate or intricate items, an ultrasonic cleaner is a great investment. Consider the size, power, frequency (40KHz is ideal for general use), and heating options before purchasing.

    What are internal tank dimensions, and why do they matter?

    The internal tank measurements determine the maximum size of objects that can be cleaned. Always check your item dimensions to ensure they fit comfortably in the tank.

    What does ultrasonic power mean?

    Ultrasonic power (200W) refers to how strong the cleaning waves are. Higher power means stronger vibrations in the water, which create tiny bubbles that clean the dirt off your items. A 200W ultrasonic power is strong enough to clean heavy dirt, but still gentle enough for more delicate items, like jewellery.

    What does heater power mean?

    Heater power (400W) means the strength of the heater inside the cleaner. The more heater power, the faster the water can get hot. Heating the water helps break down grease and sticky substances faster, so your cleaning job is done quicker and more efficiently.

    What is the temperature range, and why does it matter?

    The temperature range (0-80°C) tells you how hot the cleaning solution can get. Hotter water helps clean things like grease, oil, or sticky dirt more easily. So, if you need to clean something that's really dirty, you can turn up the heat. On the other hand, if you're cleaning something delicate, you can keep the water cooler to avoid damage.

    What does frequency mean?

    Frequency (40kHz) refers to the number of sound waves that the ultrasonic cleaner sends out each second. A 40kHz frequency is the most common and means the cleaner can work quickly and effectively without being too rough. It’s great for cleaning delicate things like jewellery but also strong enough for tougher dirt on things like tools.
