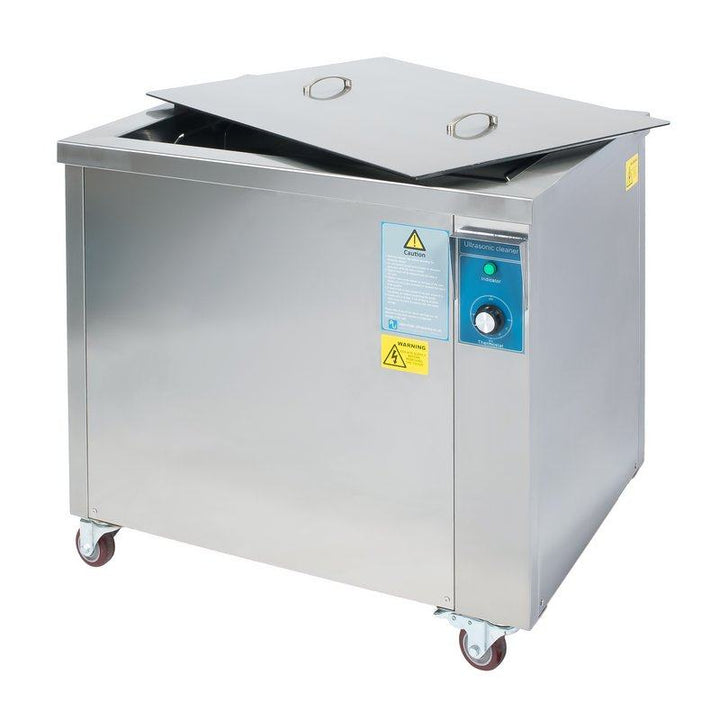

145 Litre 6000W 28kHz Digital Control Ultrasonic Cleaner

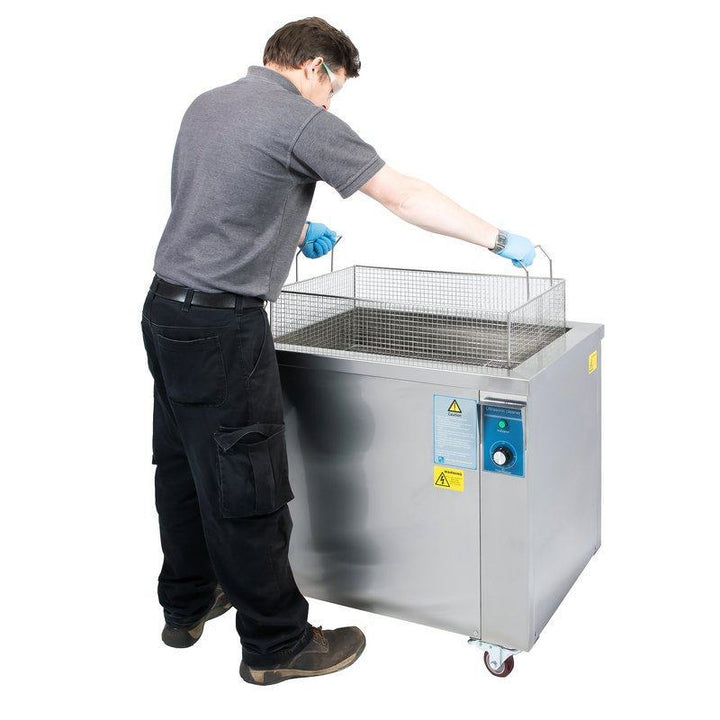

• Industrial Floor standing 145 Litre Ultrasonic cleaner
• 28KHz operating frequency providing a fast general clean
• Tested and Approved BS EN 12921-1:2010 standard
• Bath L700mm x W500mm x H445mm / L27.56" x W19.69" x H17.52"

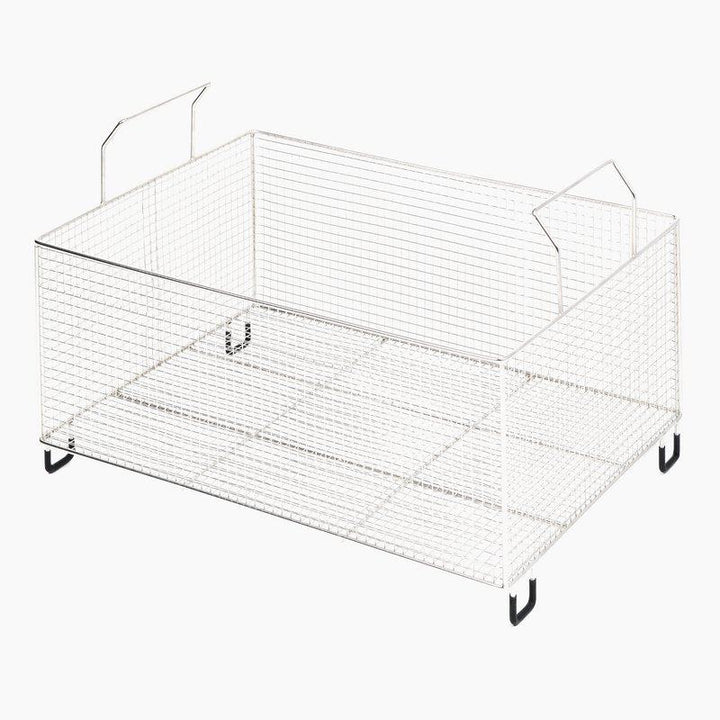

• Basket included, dimensions L680mm x W480mm x H310mm / L26.77" x W18.9" x H12.2"
• Cleaner external dimensions L900mm x W700mm x H770mm / L35.43" x W27.56" x H30.31"
• Items can be suspended in the bath, avoiding contact with the base
• 304 Grade Stainless-steel, 2mm Thick bath (Folded/welded) Construction
• 2160W of Ultrasonic power and 6000W of heating power

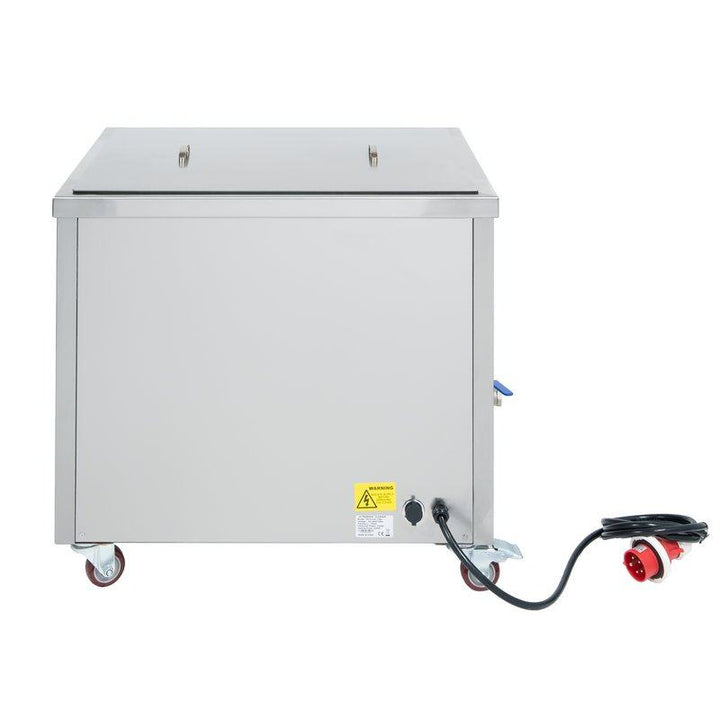

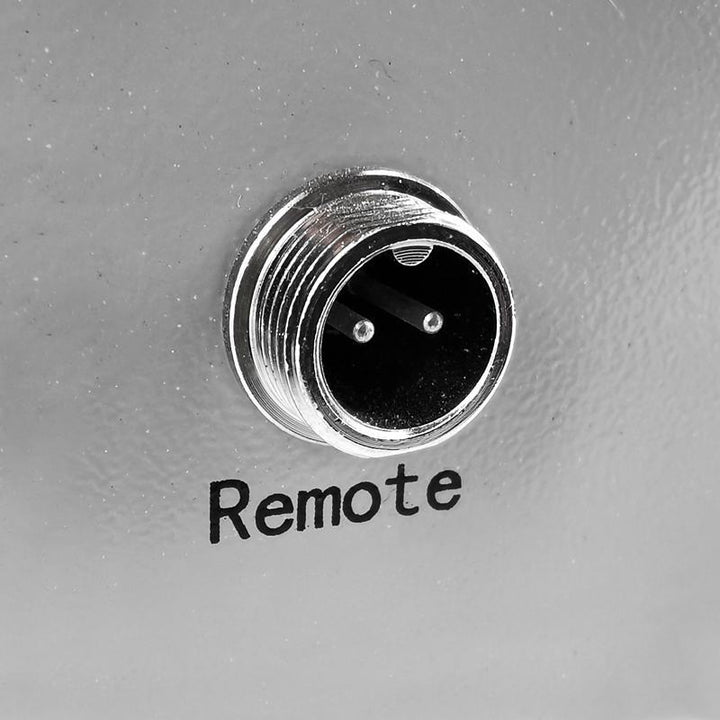

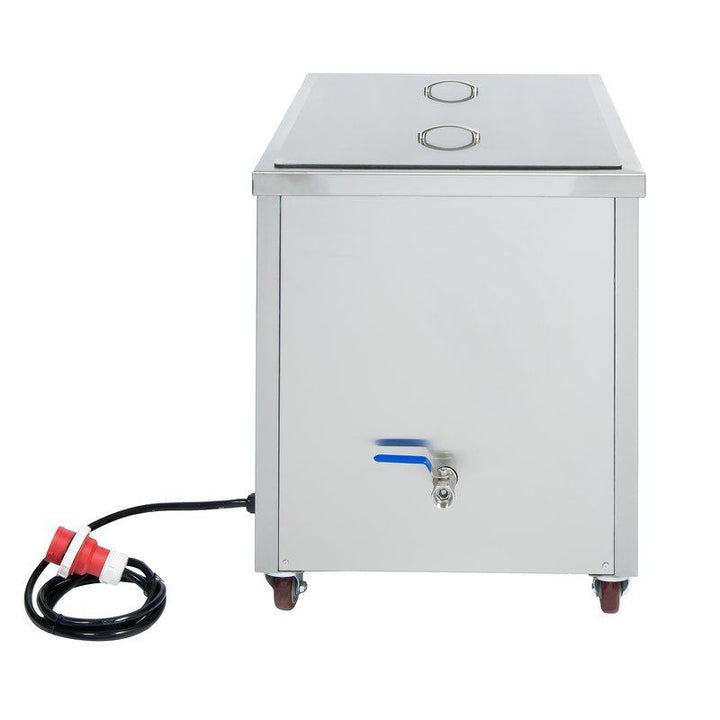

• Special Features: Caster wheels, 1 Inch BSP Drain Valve, Remote control input

A large 145L Capacity, floor standing industrial Ultrasonic Cleaner, temperature adjustable from 20-80 Degrees C. Comes with a remotely positionable Ultrasonic Generator which has a digital display and 0-99-minute cycle timer, variable power control from 10-100% and a Pulse function suitable for degassing and delicate cleaning. The robust 2mm 304 grade stainless steel bath is fitted with a 1” BSP drain valve for removal of fluids. Unit also comes with a 304-grade stainless steel cleaning basket and lid. The ultrasonic process allows you to reach areas previously inaccessible through conventional labour-intensive cleaning. As a semi-automated process, repeatable results are readily achievable in a fraction of the time of manual cleaning.

Key Specifications

Tank Volume: 145 Litre to brim

Bath Dimensions: L700mm x W500mm x H445mm (L27.56" x W19.69" x H17.52")

Basket Dimensions: L680mm x W480mm x H310mm (L26.77" x W18.9" x H12.2")

External Dimensions: L900mm x W700mm x H770mm (L35.43" x W27.56" x H30.32")

Transducer Power: 2160W Generator, supply 230VAC 50-60Hz

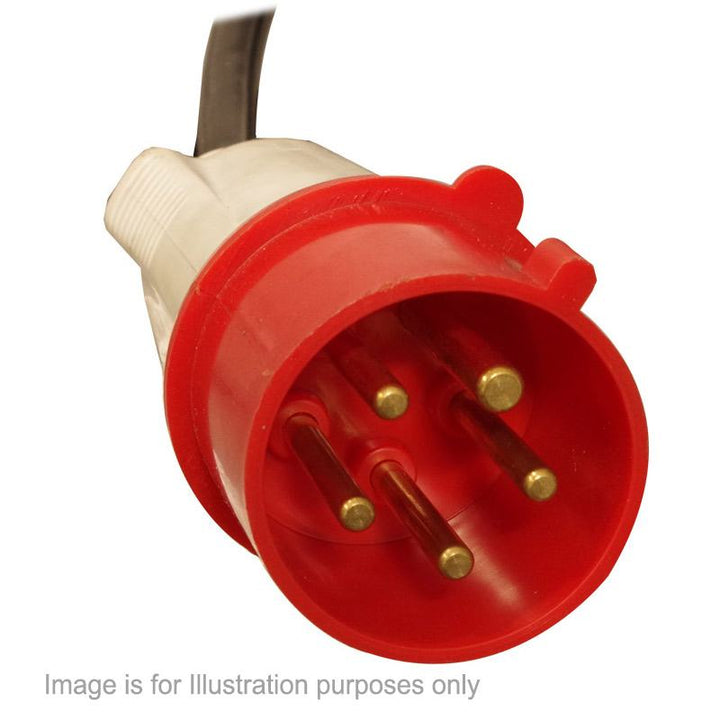

Heater Power: 6000W requires 26A 3 Phase 400VAC 50-60HZ

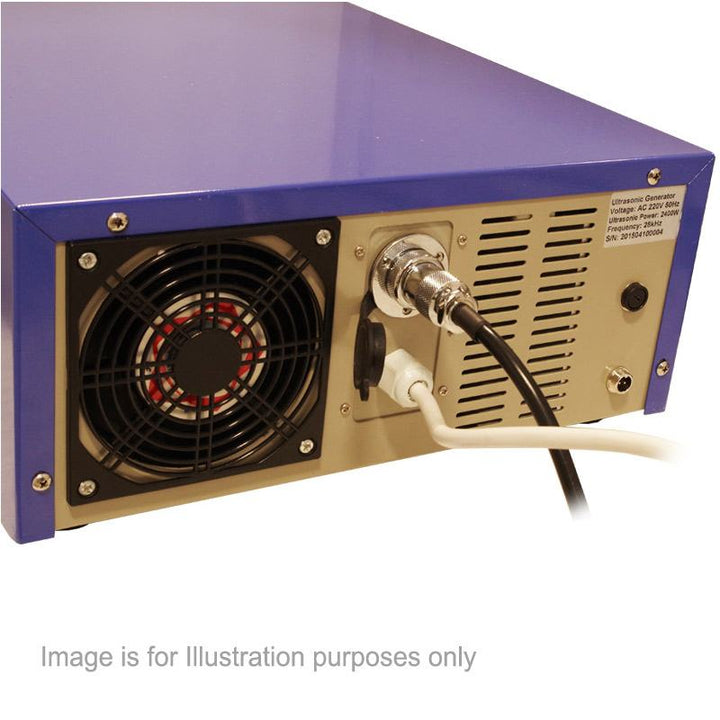

Generator Type: 1 x US-SP-XL-GEN-2400

Transducer Frequency:28KHz

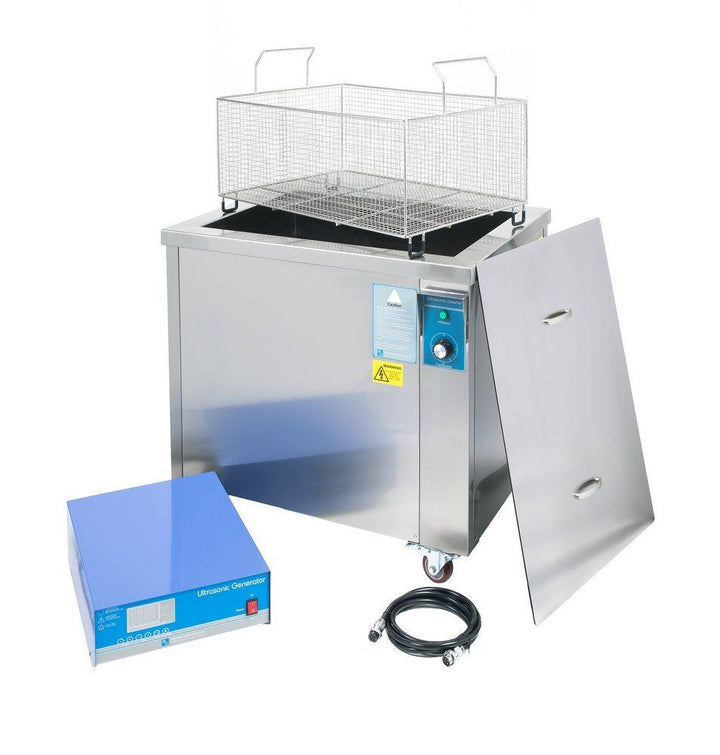

Product Contains

1 x XL Ultrasonic Cleaner

1 x Stainless-Steel lid

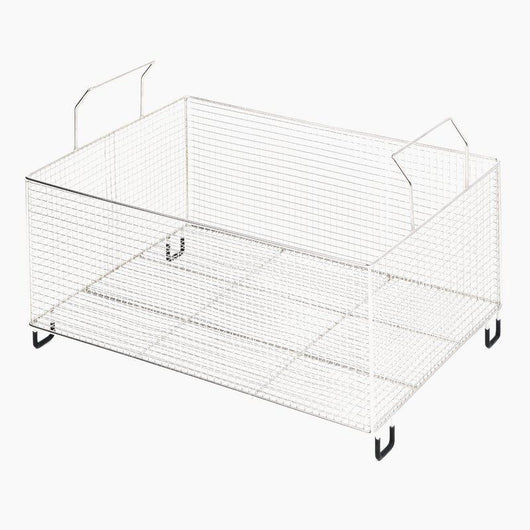

1 x Stainless steel 304 Grade basket

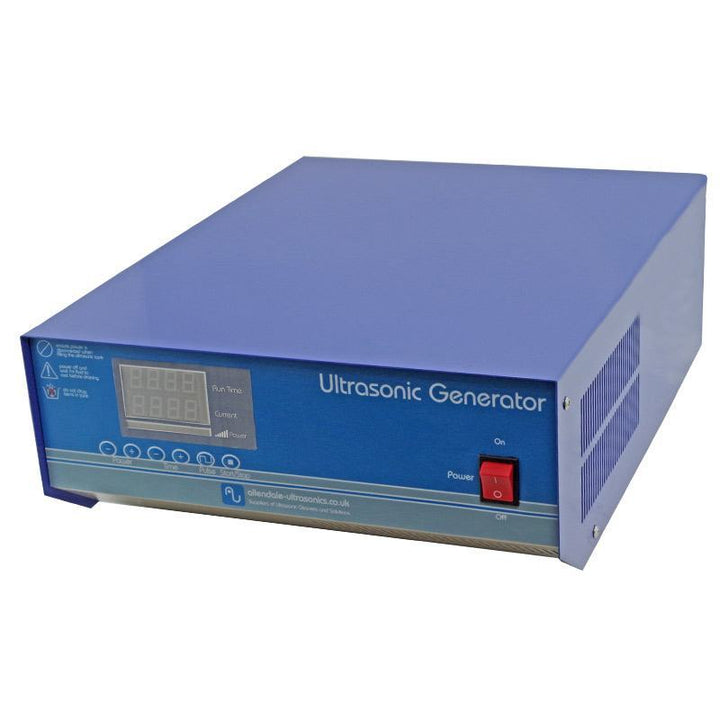

1 x US-SP-XL-GEN-2400 Ultrasonic generator

1 x Interconnecting generator lead 2.7m long

1 x XL Ultrasonic Cleaner User Manual

1 x Robust Shipping Crate

Typical Applications

Mechanics, Engineering, Manufacturing, Dental practices, Veterinarian, Laboratories, Tattoo studios, Body piercing parlours, Repair and Maintenance, Scuba diving, Jewellers, Acupuncture, Bars, Hobbyists, Print Industry.
