112 Litre 4000W 28kHz Digital Control Ultrasonic Cleaner

£2,615.34 Excl. VAT

£3,138.41 Incl. VAT

Add to Wishlist
Order in the next [totalHours] hrs %M mins and get it as soon as

Frequently Bought Together

Total price:£2,707.34
Description

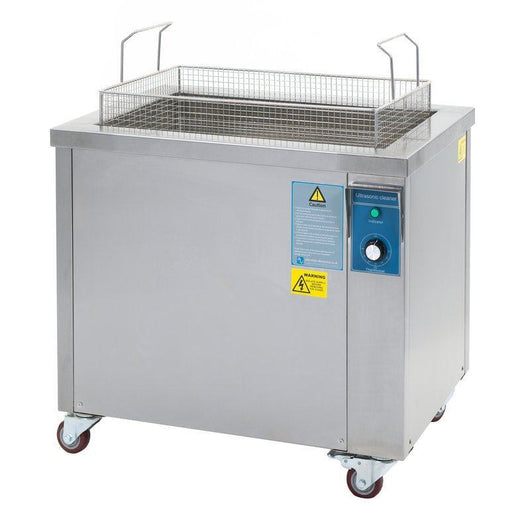

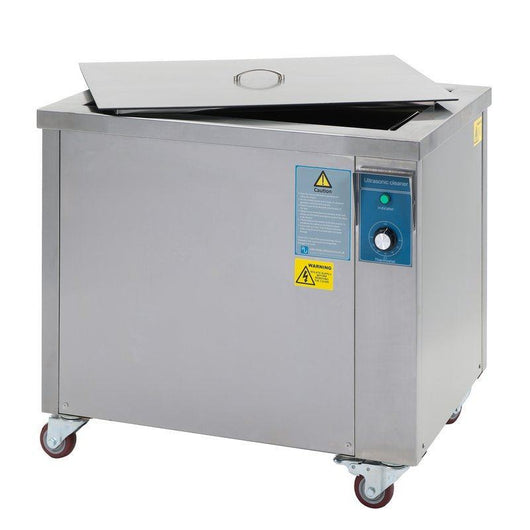

A robust, high-capacity ultrasonic cleaner designed for professional and industrial use, this 112L floor-standing ultrasonic cleaning system operates at 28kHz to deliver deep and effective cleaning of complex, contaminated, or precision-engineered parts. With 1800W of ultrasonic power and 4000W heating capacity, supported by a three-phase 400VAC supply, it’s built for demanding environments such as manufacturing plants, heavy-duty workshops, and repair facilities.


Key Features

28kHz Ultrasonic Frequency
Optimised for fast and thorough cleaning of oily, machined, or soiled components.

Large 112 Litre Tank Capacity
Ideal for larger industrial parts or bulk processing of smaller items.

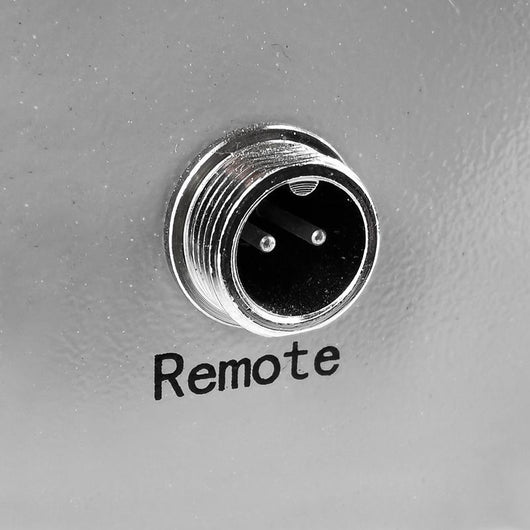

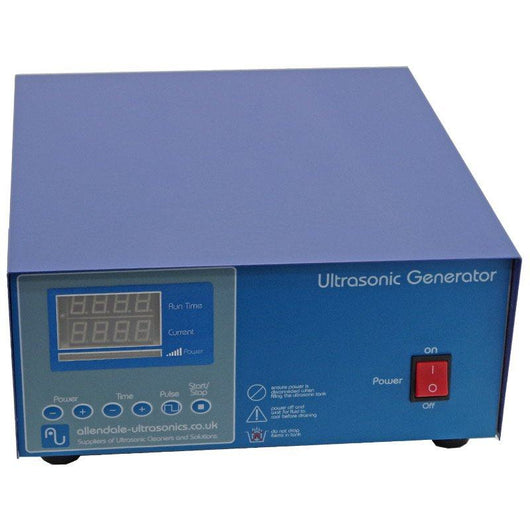

Remote-Controlled Digital Generator
Supplied with the US-SP-XL-GEN-1800 generator, featuring a 0–99 minute timer, variable power control (10–100%), and Pulse function for degassing and fine cleaning.

Temperature Adjustable from 20–80°C
Supports temperature-sensitive cleaning processes and removes stubborn residues efficiently.

2mm Thick, Folded & Welded Stainless Steel Tank
304-grade stainless steel bath offers outstanding strength, chemical resistance, and longevity in industrial settings.

Built for Industrial Use & Mobility

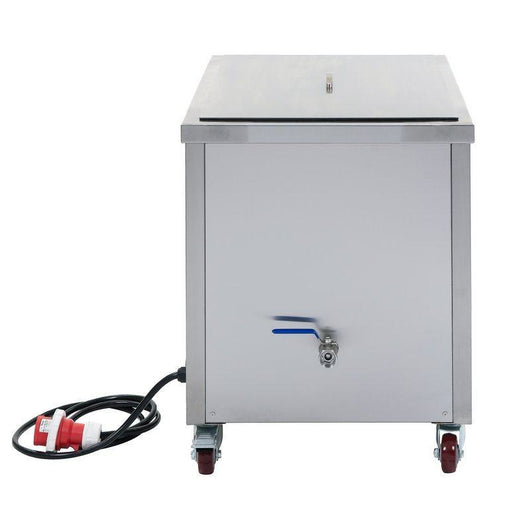

Mounted on caster wheels with a 1” BSP drain valve for easy fluid removal and positioning within the workspace.


Technical Specifications

Tank Volume: 112 Litres (to brim)

Bath Dimensions: L650mm x W450mm x H400mm (L25.59" x W17.72" x H15.75")

Basket Dimensions: L630mm x W430mm x H200mm (L24.8" x W16.93" x H7.87")

External Dimensions: L790mm x W590mm x H700mm (L31.1" x W23.23" x H27.56")

Ultrasonic Frequency: 28kHz

Ultrasonic Power: 1800W

Heating Power: 4000W

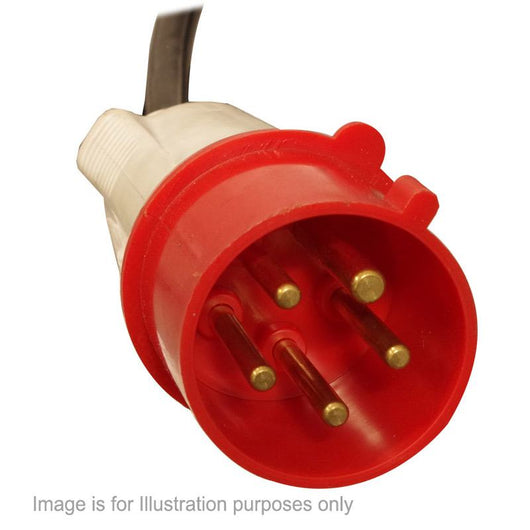

Power Supply: 3 Phase, 18A, 400VAC 50–60Hz

Generator Type: US-SP-XL-GEN-1800

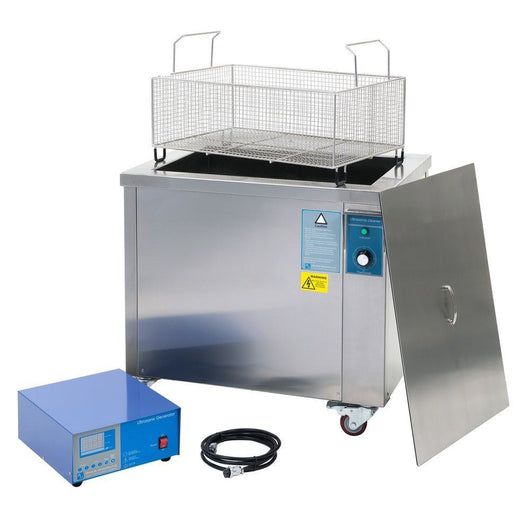

What’s Included

1 x 112L Floor-Standing Ultrasonic Cleaner

1 x Stainless Steel Lid (304 Grade)

1 x Stainless Steel Cleaning Basket (304 Grade)

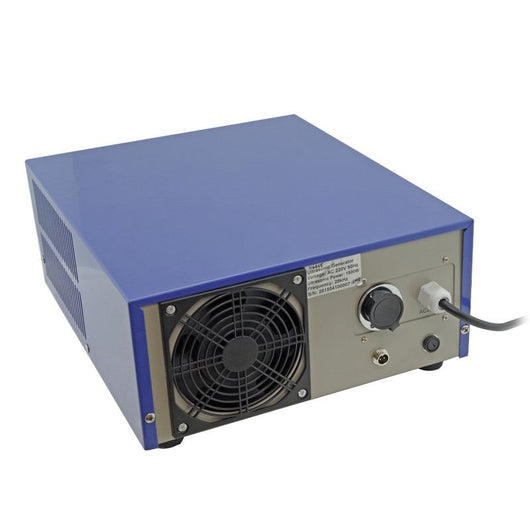

1 x US-SP-XL-GEN-1800 Digital Ultrasonic Generator

1 x 2.7m Interconnecting Generator Cable

1 x User Manual

1 x Industrial-Grade Shipping Crate

Understand what product is right for you with our Educational Buyers Guide

Learn more about Allendale Group Ltd.

Specifications & Data Sheets
Product Specifications
Transducer Frequency (kHz) 28KHz
Bath Material Thickness (mm) 2
Transducer Power (Watts) 1800
Basket Included Yes
Heater Function Yes
Transducer Quantity 30
Watts per Litre Rating 20
Series Industrial
User Interface Digital Control
Sub Type Digital
Internal Length 650mm
Internal Width 450mm
Internal Height 400mm
User Manual View User Manual
Comparison Sheet
View Comparison Sheet
Barcode (GTIN): 5055396125962
Delivery Information

Couriers we use

  • Royal Mail
  • DPD
  • DHL
  • Palletways (large / heavy items)

Delivery Times

  • UK: 1-4 working days
  • Europe: 3-10 working days
  • International: 4-15 working days

Times are estimates and may vary

Cost

Cost of shipping can be calculated at checkout or within your cart, if no options appear please contact us

Warranty Information
  • 12 Month coverage from purchase date
  • Free repair or replacement for defective faulty products
  • Normal wear and tear is not covered

Eligibility

  • Products must be installed and used as per the user manual or documentation
  • Used only for its intended purpose
  • Accidental damage, misuse and resulting loss are excluded

Exclusions

Consumables are not covered, examples being batteries, solder tips and heating elements

For any issues or questions please contact us

Frequently Asked Questions

What can I clean with an ultrasonic cleaner?

Ultrasonic cleaners are suitable for a wide range of applications, including:


– Rings, watches, and delicate metalwork

– Nuts, bolts, carburettors, fuel injectors

– Scalpels, forceps, dental tools

– Glassware, beakers, test tubes

– Gun parts and casings

– Circuit boards (if fully dried after cleaning)

– Coins, model parts, and diving equipment

Unsure? Contact us below

How do I control the cleaning process?

Most ultrasonic cleaners come with adjustable temperature and timer controls. The temperature can range from 20-80°C, and the cleaning time typically varies from 0-20 minutes, depending on the level of dirt and the type of object being cleaned.

Do I need a cleaning basket?

Yes, using a wire basket (usually sold separately) is recommended. It helps to keep items suspended in the tank, preventing direct contact with the bottom, which improves cleaning efficiency and protects the cleaner.

Can I put multiple items in an ultrasonic cleaner at once?

Yes, but avoid overcrowding. Items should be spaced apart so that the cleaning solution can circulate freely around them for an even clean. Using a wire basket helps to keep items properly positioned.

Can I use tap water in my ultrasonic cleaner?

Yes, but distilled or deionised water is always recommended, especially for delicate items like jewellery or medical tools, as it reduces mineral deposits that could be left behind.

Do ultrasonic cleaners heat the water?

Yes, many of our models include a built-in heating element (20-80°C) to improve cleaning effectiveness, especially for removing grease, oil, and hardened contaminants. Please check the product description

Do your ultrasonic cleaner come with a warranty?

Standard Warranty: All products are guaranteed for one year from the date of purchase (unless otherwise specified).

During the warranty period, we will repair or replace any defective products at no charge (return-to-base warranty), excluding normal wear and tear.

How do I know if an ultrasonic cleaner is right for me?

If you need a fast, effective, and hands-free way to clean delicate or intricate items, an ultrasonic cleaner is a great investment. Consider the size, power, frequency (40KHz is ideal for general use), and heating options before purchasing.

What are internal tank dimensions, and why do they matter?

The internal tank measurements determine the maximum size of objects that can be cleaned. Always check your item dimensions to ensure they fit comfortably in the tank.

What does ultrasonic power mean?

Ultrasonic power (200W) refers to how strong the cleaning waves are. Higher power means stronger vibrations in the water, which create tiny bubbles that clean the dirt off your items. A 200W ultrasonic power is strong enough to clean heavy dirt, but still gentle enough for more delicate items, like jewellery.

What does heater power mean?

Heater power (400W) means the strength of the heater inside the cleaner. The more heater power, the faster the water can get hot. Heating the water helps break down grease and sticky substances faster, so your cleaning job is done quicker and more efficiently.

What is the temperature range, and why does it matter?

The temperature range (0-80°C) tells you how hot the cleaning solution can get. Hotter water helps clean things like grease, oil, or sticky dirt more easily. So, if you need to clean something that's really dirty, you can turn up the heat. On the other hand, if you're cleaning something delicate, you can keep the water cooler to avoid damage.

What does frequency mean?

Frequency (40kHz) refers to the number of sound waves that the ultrasonic cleaner sends out each second. A 40kHz frequency is the most common and means the cleaner can work quickly and effectively without being too rough. It’s great for cleaning delicate things like jewellery but also strong enough for tougher dirt on things like tools.
