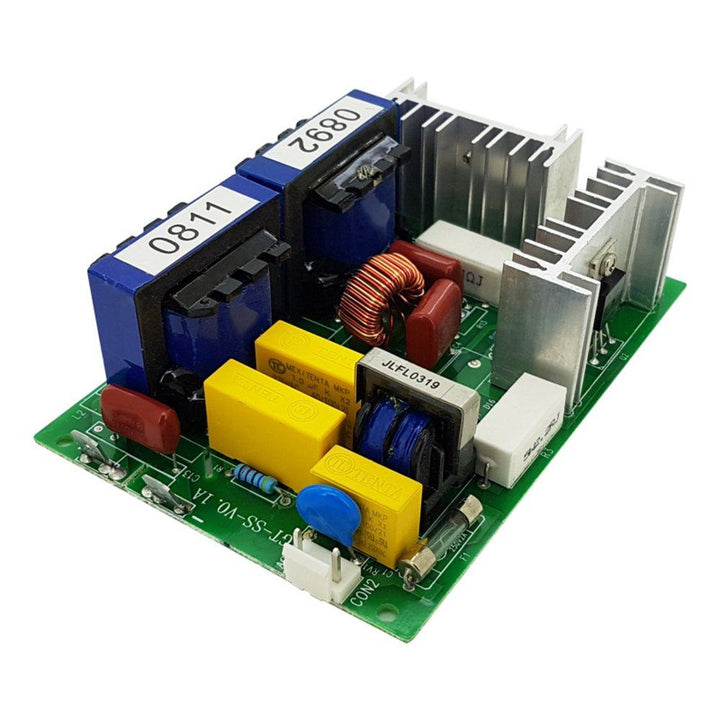

100W 28kHz Ultrasonic Transducer Drive PCB Assembly

• NOTE: Replacing / altering any electronic components within the first 12 months of purchase will void manufacturer warranty.
• 100W 28kHz ultrasonic transducer generator driver
• Drives two pieces of US-SP-TR-28
• Operates from a 220-240VAC supply

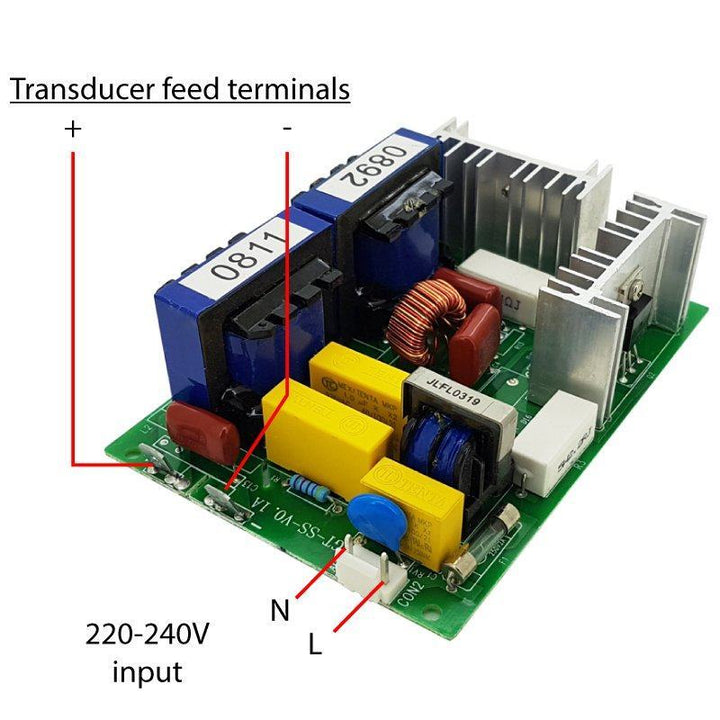

• 6.3x0.8mm output spade terminals (polarity marked on PCB)
• Molex MV396 type pin header power connections

100W / 28kHz - Ultrasonic Transducer Drive PCB Assembly

We strongly advise that this part is only intended for use on the advertised model and should not be used to repair any other item branded by a different manufacturer. Although the parts may look the same, the technical specifications may vary. Using parts that are incompatible can cause injury or serious damage to the part being replaced. We reserve the right to void any warranty where this part is not used in its intended circumstance.

** WARNING!! Ultrasonic tanks contain components which operate at lethal voltages, work should ONLY be undertaken by suitably qualified individuals **

"

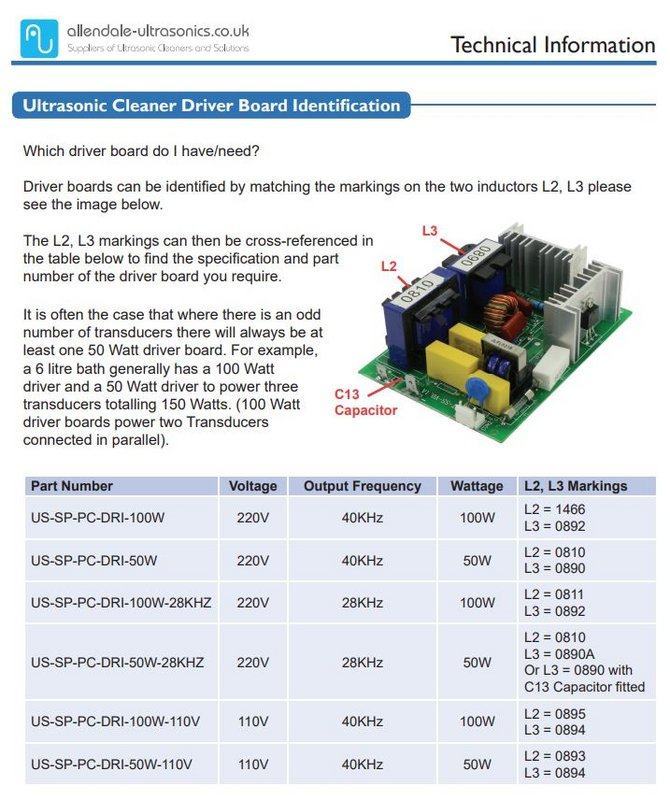

• Ultrasonic Cleaner Driver Boards - Data Sheet
