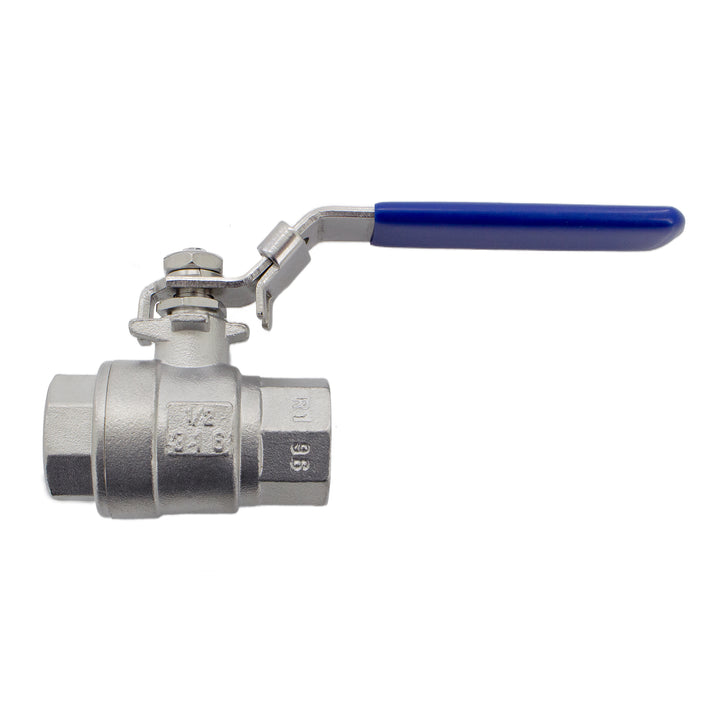

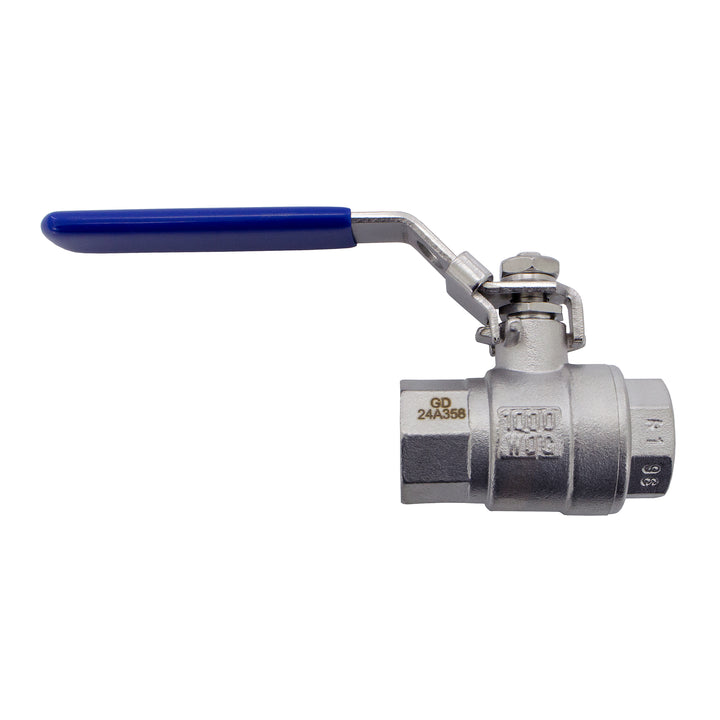

1/2" BSP Stainless Steel Ball Drain Tap Valve for 6L to 36L Allendale Ultrasonic Cleaners

1/2" BSP stainless steel ball Drain Tap valve suitable for 6L to 36L ultrasonic cleaners

• Size: 1/2"
• Material: Stainless Steel
• Connection: BSP Parallel F x F
• Standards: BS EN 10226-1 (Formerly BS 21), ASME B16.34, API 598/GB/T13927-92
• Max Operating Pressure: 69 bar
• Temperature Range: -29 to 230°C
• Full Bore: Yes



This stainless steel ball valve is designed for use with Allendale Ultrasonics cleaners ranging from 6L to 36L in capacity. It offers reliable flow control for draining and maintaining your ultrasonic cleaning system.

Made from high-quality stainless steel, the valve features a full bore for maximum flow efficiency and is rated for high pressure up to 69 bar (1,000 psi), with hydrostatic testing up to 103 bar (1,500 psi).

It operates across a wide temperature range (-29°C to 230°C), making it ideal for tough cleaning environments. The lever handle is covered in blue plastic for comfortable use and includes a lockable function for added security.

All internal seals and gaskets are PTFE, providing excellent chemical resistance and leak-free performance. The valve meets ASME B16.34 and has BSP threads to BS EN 10226-1 standards.

A robust and dependable choice for managing fluid flow in Allendale Ultrasonics cleaning systems.
